Available for PREORDER : EST LATE SEPT 2026

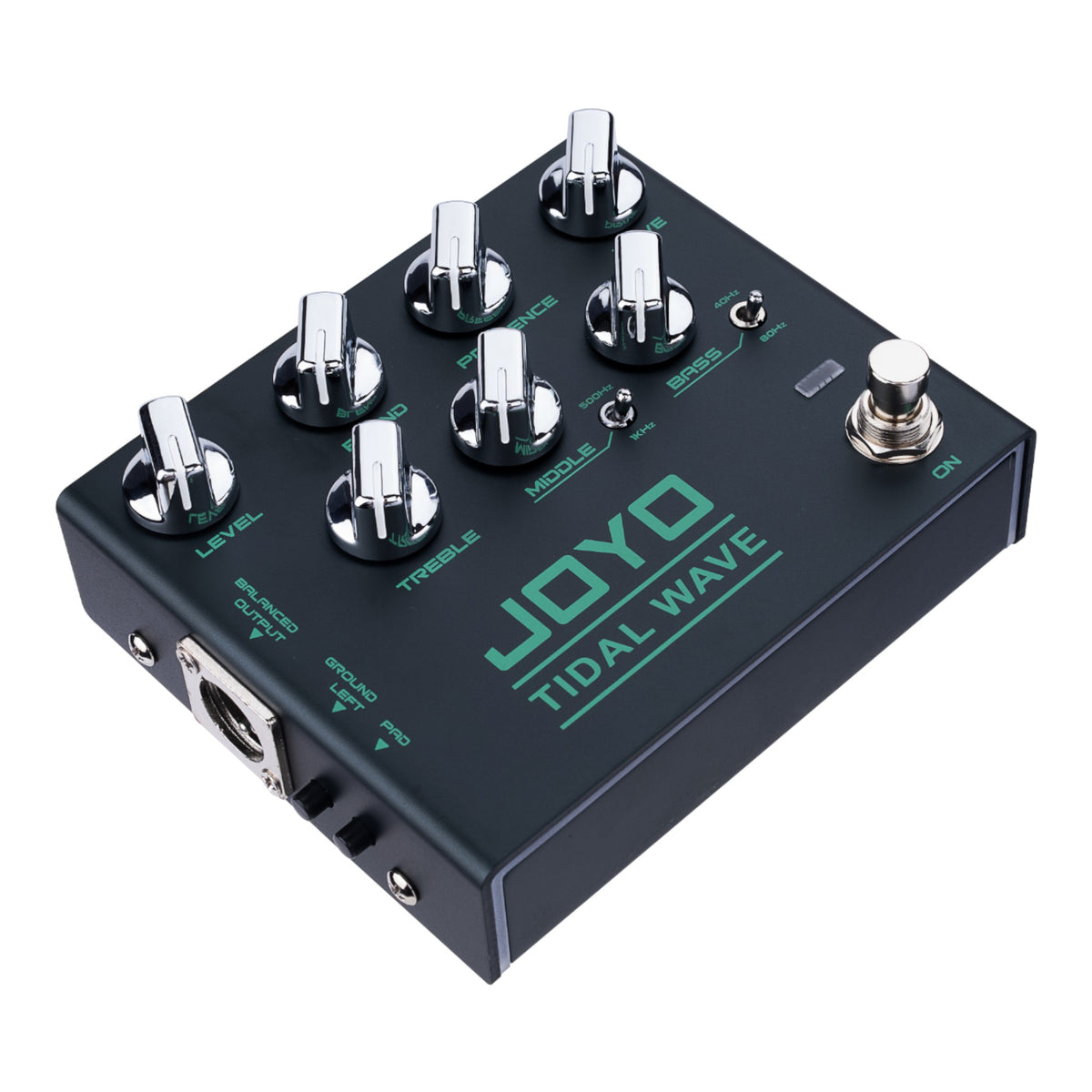

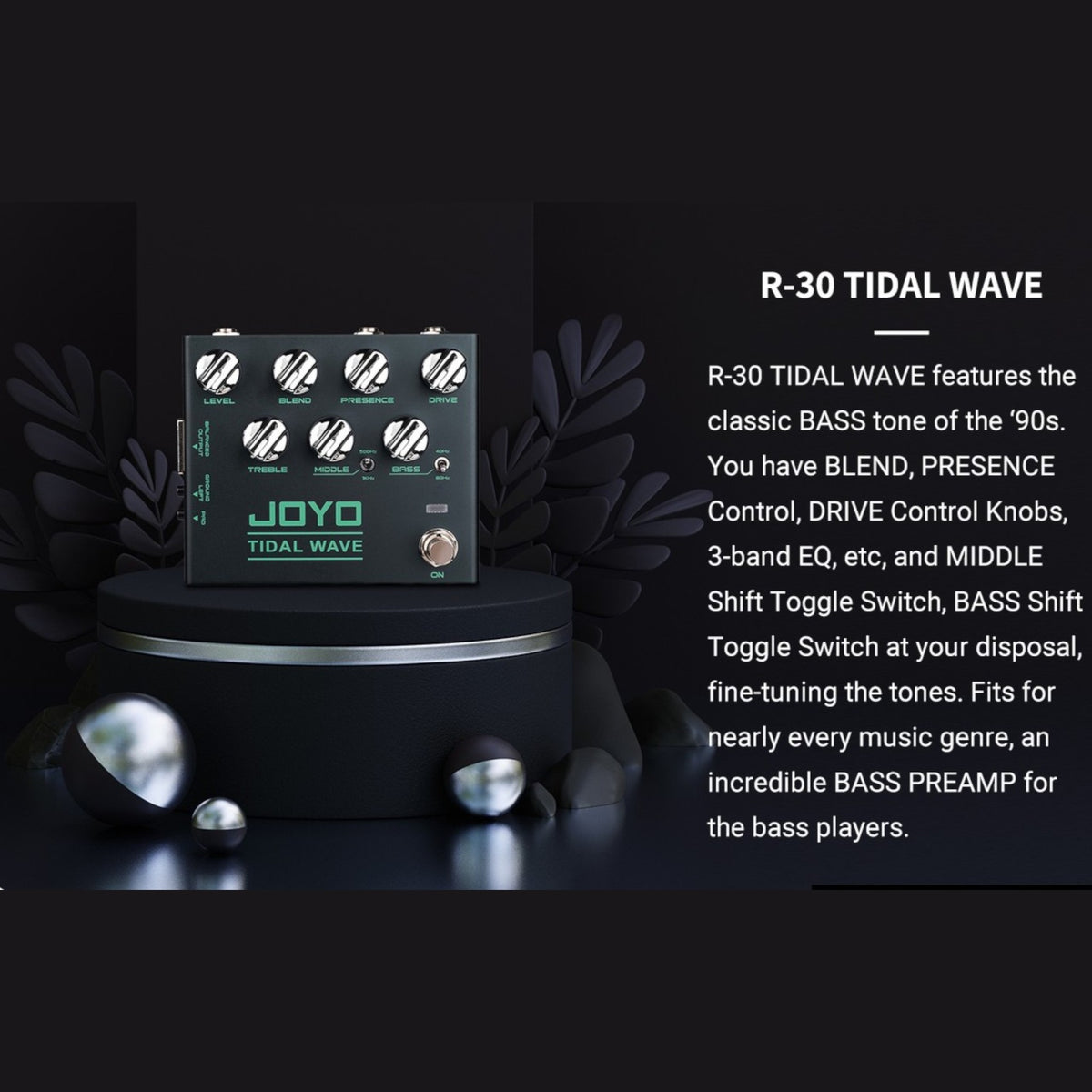

The JOYO R30 Tidal Wave is a versatile bass preamp designed to capture the iconic character of 1990s bass tones, combining deep tonal colouration, cabinet simulation and extensive EQ controls in a compact pedalboard-friendly format.

With dedicated Drive, Presence, Blend and Level controls, the Tidal Wave provides a wide range of tonal shaping options, while its 3-band EQ and selectable Bass and Middle frequency shifts allow you to precisely sculpt your sound. The vivid cabinet simulation adds a realistic, live-performance feel and can be blended with your dry signal for greater control over the final tone.

The R30 Tidal Wave also functions as a practical DI solution, featuring a balanced XLR DI output with selectable signal attenuation. A Ground-Lift switch helps reduce unwanted noise caused by signal interference in certain setups, making the pedal suitable for both stage and recording applications.

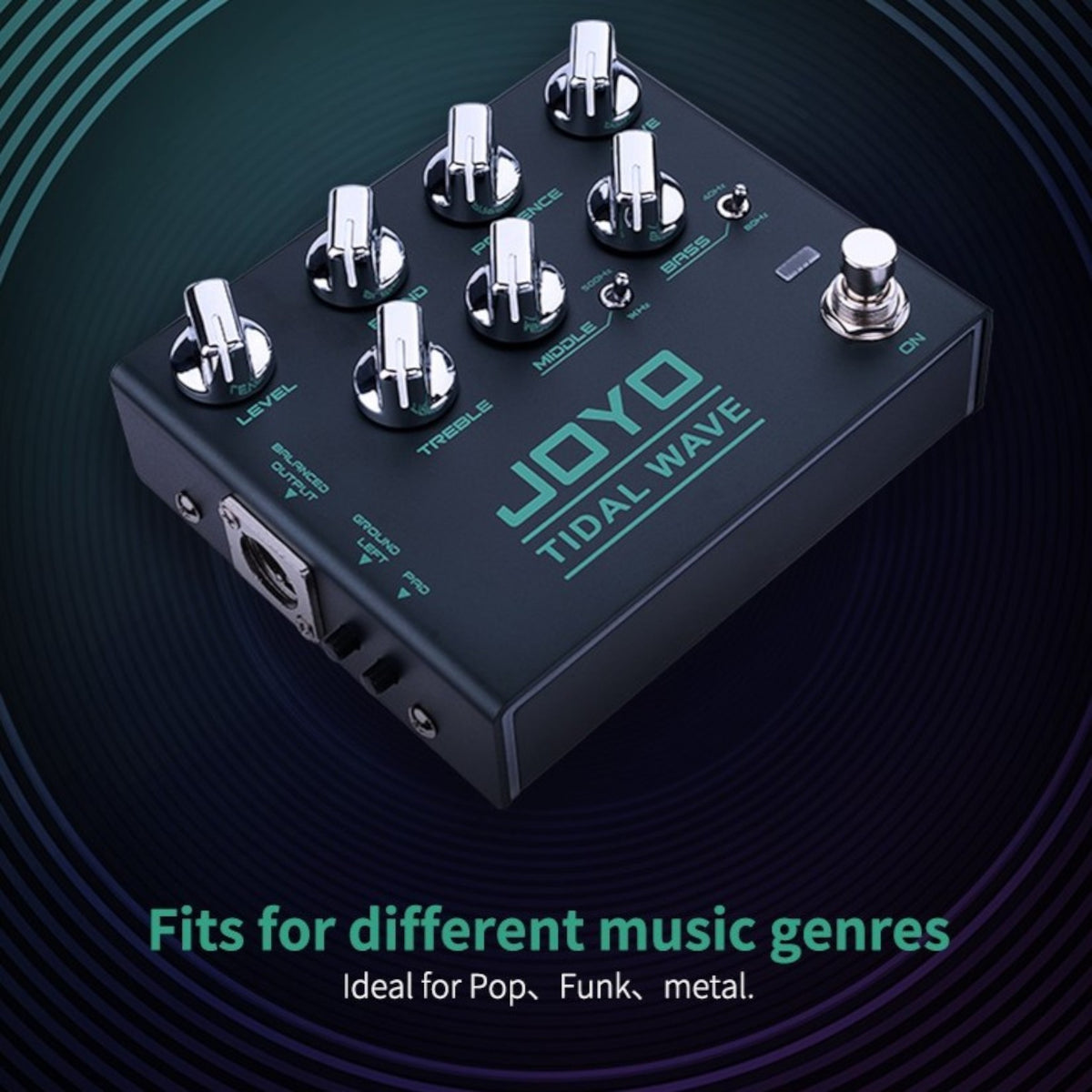

From punchy pop and funky bass lines to heavier metal tones, the Tidal Wave offers the tonal flexibility needed to cover a broad range of musical styles.

Features

• Bass preamp inspired by the iconic bass tones of the 1990s
• Vivid cabinet simulation for a realistic, live-performance feel

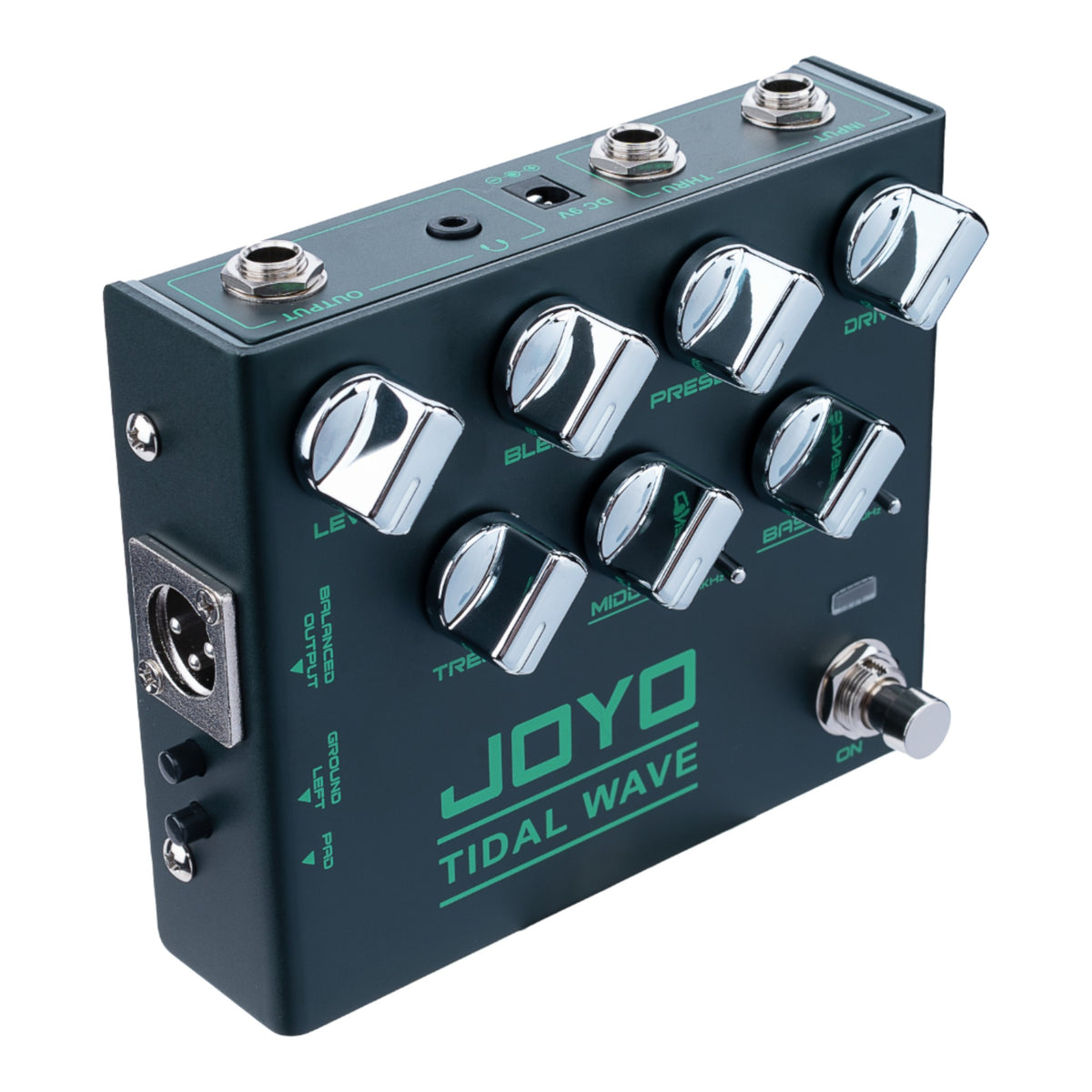

• Drive control for adding grit, saturation and character
• Blend control mixes the dry signal with the cabinet-emulated signal
• Presence control for additional high-frequency tonal shaping
• Dedicated Level control for output volume
• Comprehensive 3-band EQ with Bass, Middle and Treble controls
• Middle Shift toggle selects between 500Hz and 1000Hz
• Bass Shift toggle selects between 40Hz and 80Hz
• Suitable for a wide range of musical genres
• Ideal for pop, funk, metal and other bass-driven styles
• Built-in DI function for direct connection to mixers and audio systems
• Balanced 3-pin XLR DI output
• DI Signal Attenuation switch for flexible output level matching
• Ground-Lift switch helps reduce unwanted noise caused by signal interference
• Dedicated Thru/Direct Output for passing the direct bass signal to another device
• 3.5mm headphone output for convenient monitoring
• Front and rear orange ambience LED lighting
• Selectable ambience lighting modes
• Compact and durable pedalboard-friendly design
• Non-slip feet provide additional stability

90s-Inspired Bass Tone

The Tidal Wave is built around the characteristic tonal approach of 1990s bass sounds, giving players plenty of control over punch, warmth, drive and presence.

• Deep and powerful bass response
• Flexible midrange shaping
• Adjustable treble and presence
• Drive control for added harmonic character
• Cabinet simulation for enhanced tonal depth
• Blend control allows dry and cabinet-emulated signals to be combined
• Suitable for both clean and driven bass sounds

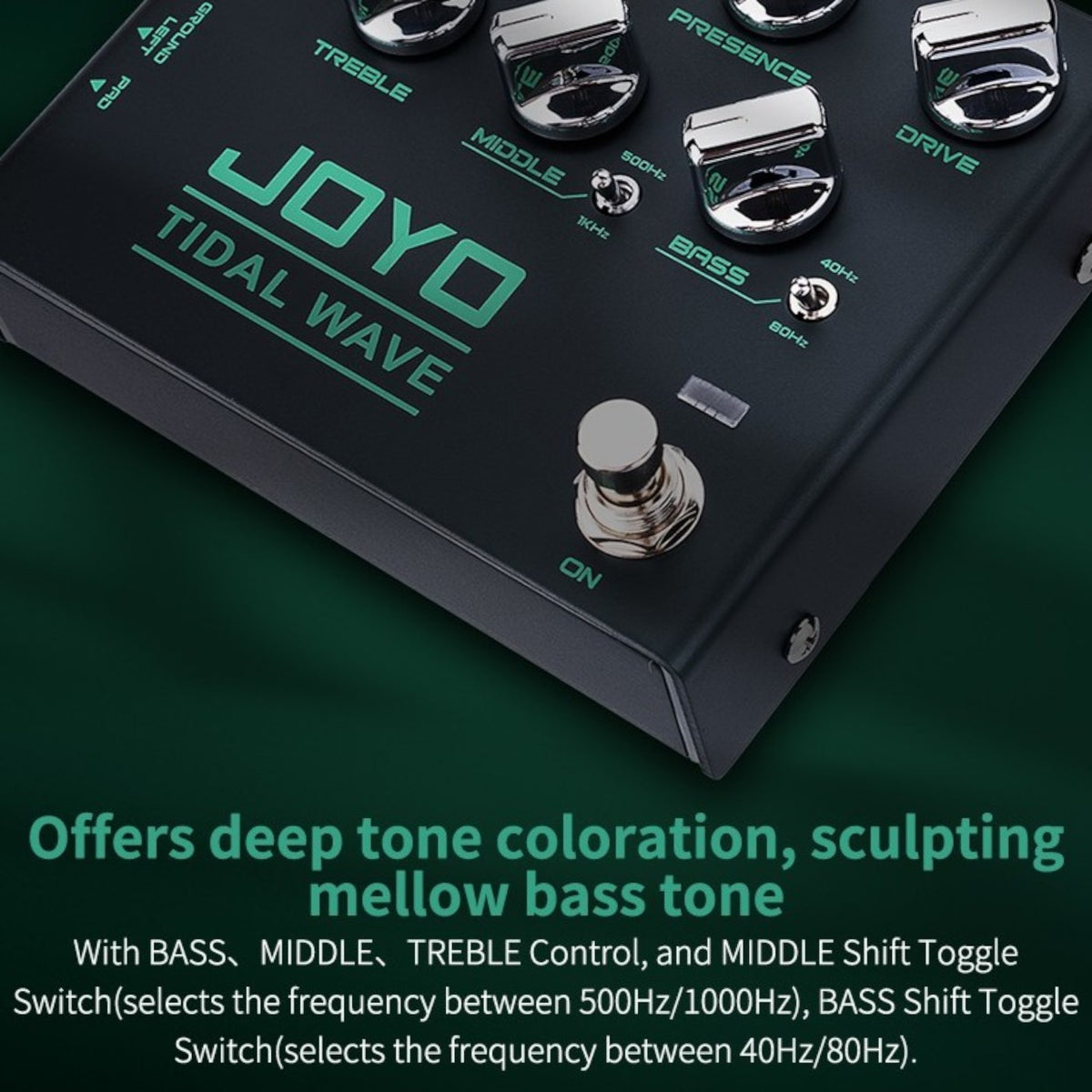

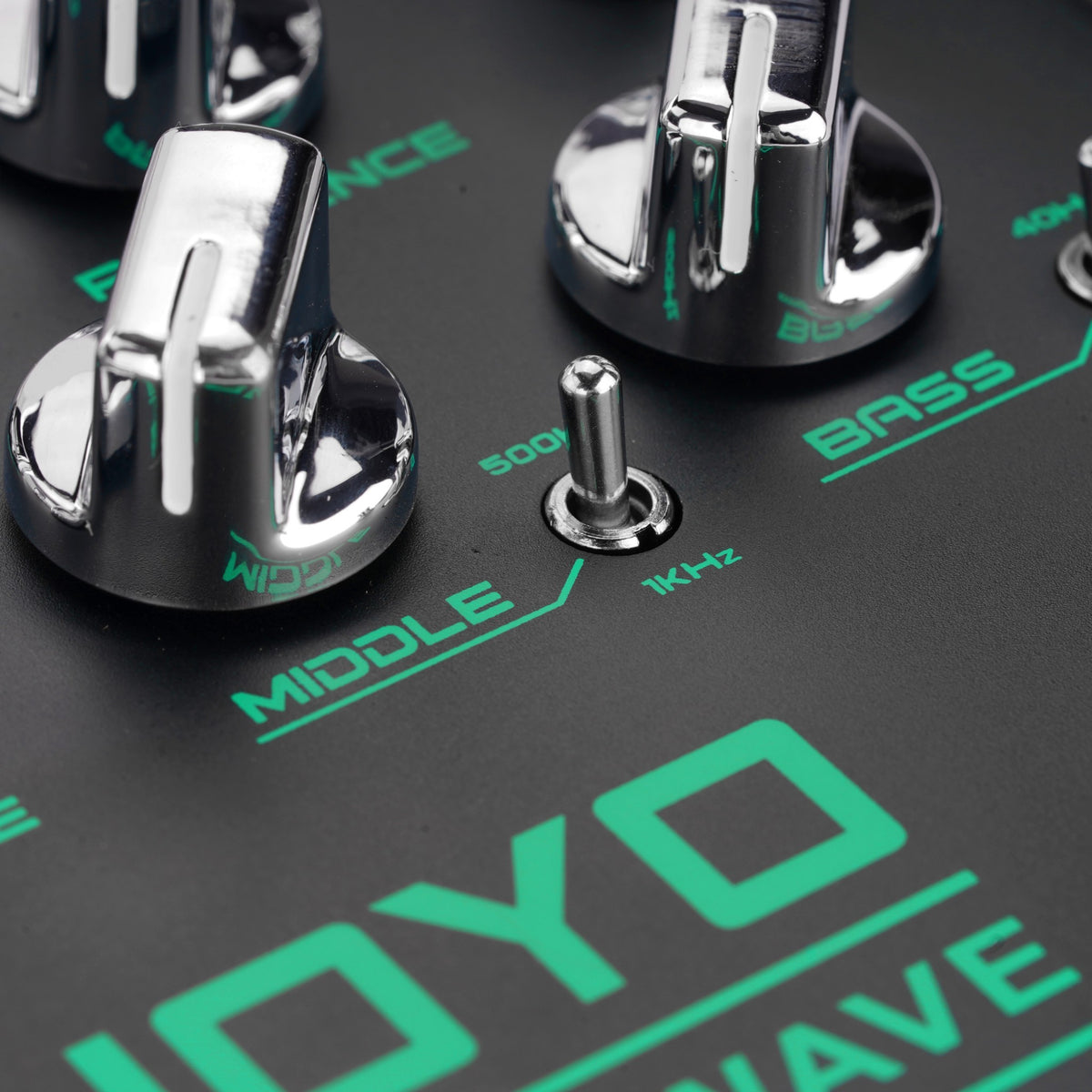

Advanced EQ Controls

The R30 provides extensive tone-shaping controls for fine adjustment of your bass sound.

• Bass Control – adjusts the low-frequency response
• Bass Shift Switch – selects between 40Hz / 80Hz bass frequencies
• Middle Control – adjusts the midrange response
• Middle Shift Switch – selects between 500Hz / 1000Hz mid frequencies
• Treble Control – adjusts the high-frequency response
• Presence Control – provides additional control over high-frequency definition

The selectable Bass and Middle frequency ranges make it easier to target different areas of the frequency spectrum and shape the pedal's overall tonal character.

Cabinet Simulation & Blend Control

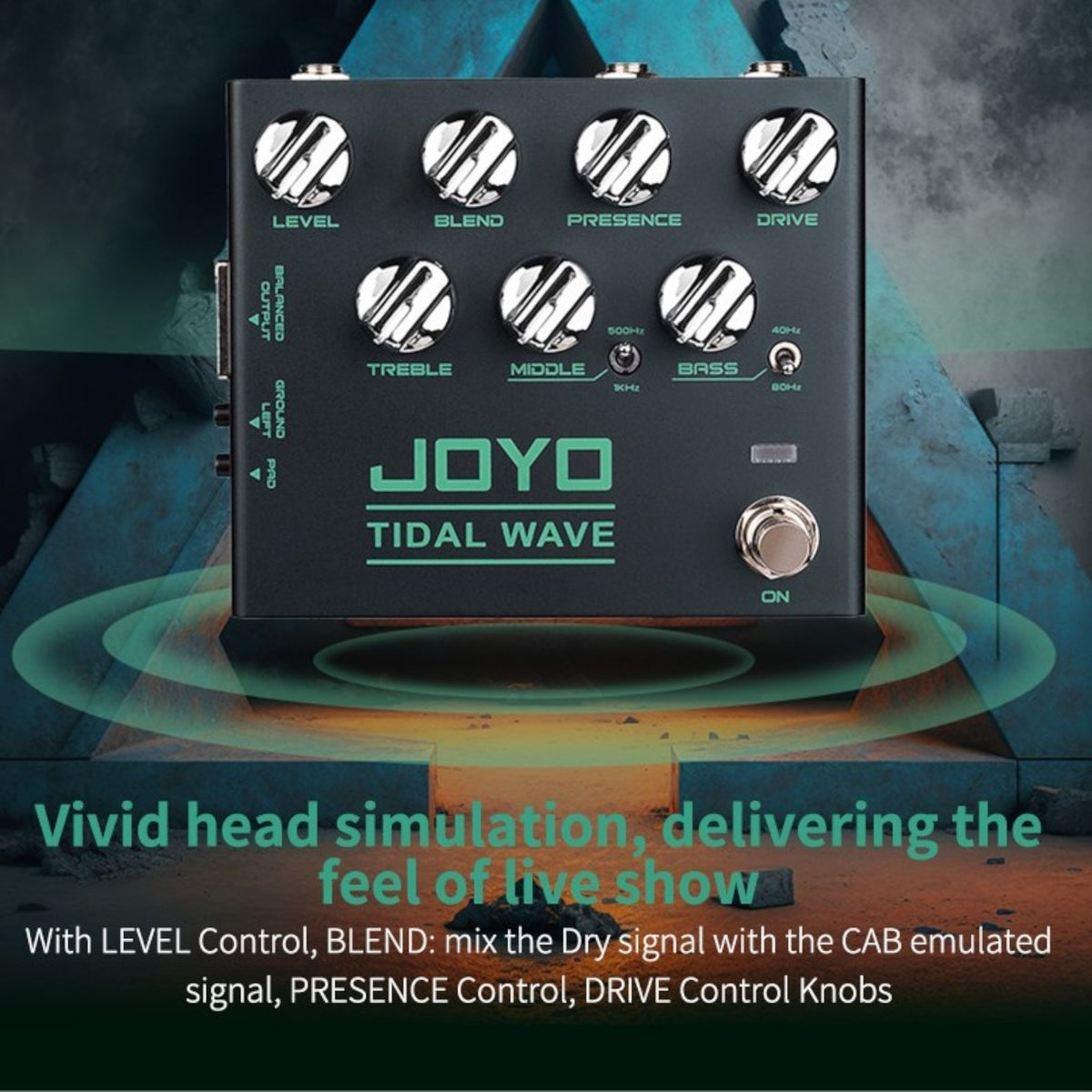

The Tidal Wave features vivid cabinet simulation designed to provide a more complete and realistic bass preamp sound.

• Built-in CAB emulation
• Blend control mixes the dry signal with the cabinet-emulated signal
• Allows the player to determine how much cabinet simulation is incorporated into the overall tone
• Helps create a more expansive and finished bass sound

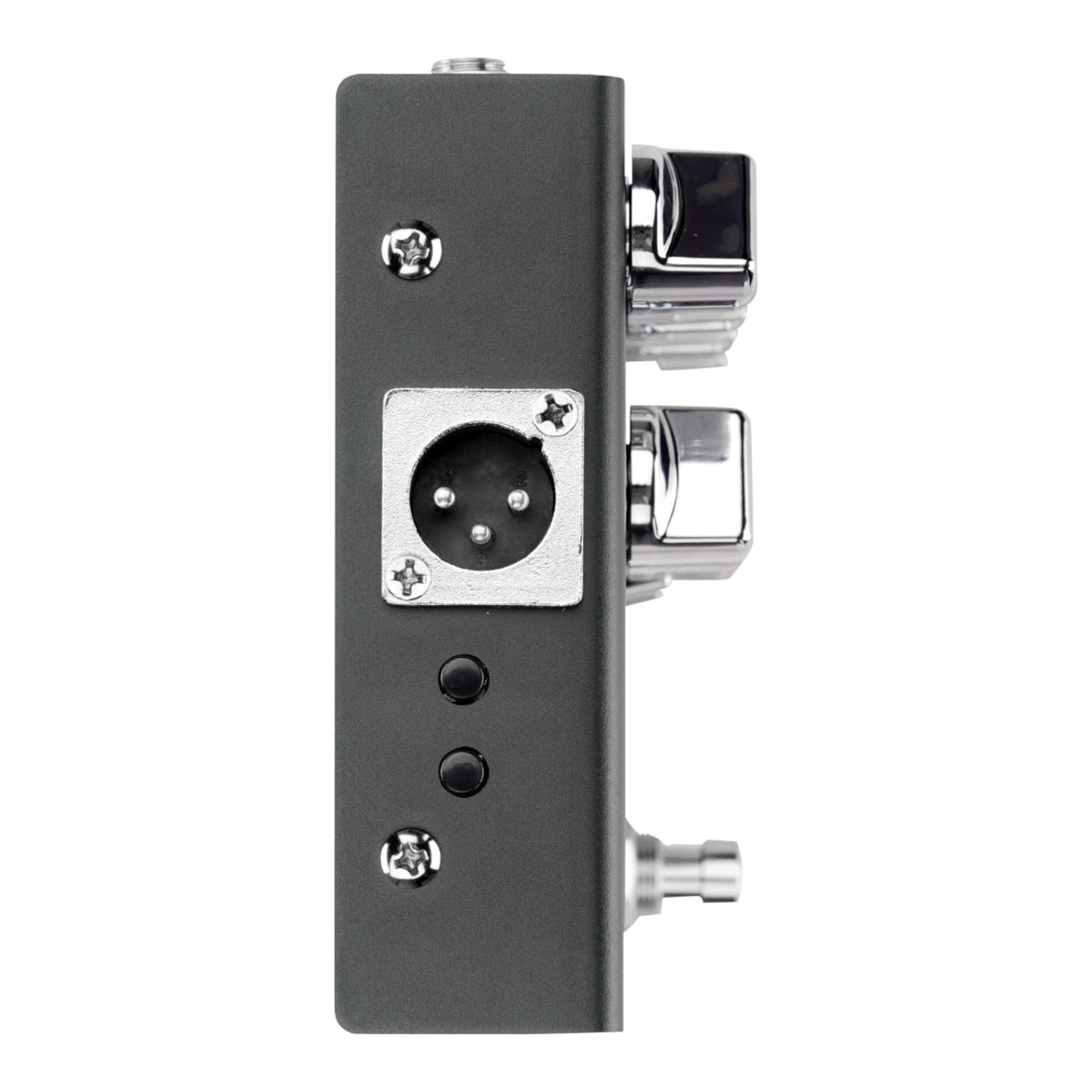

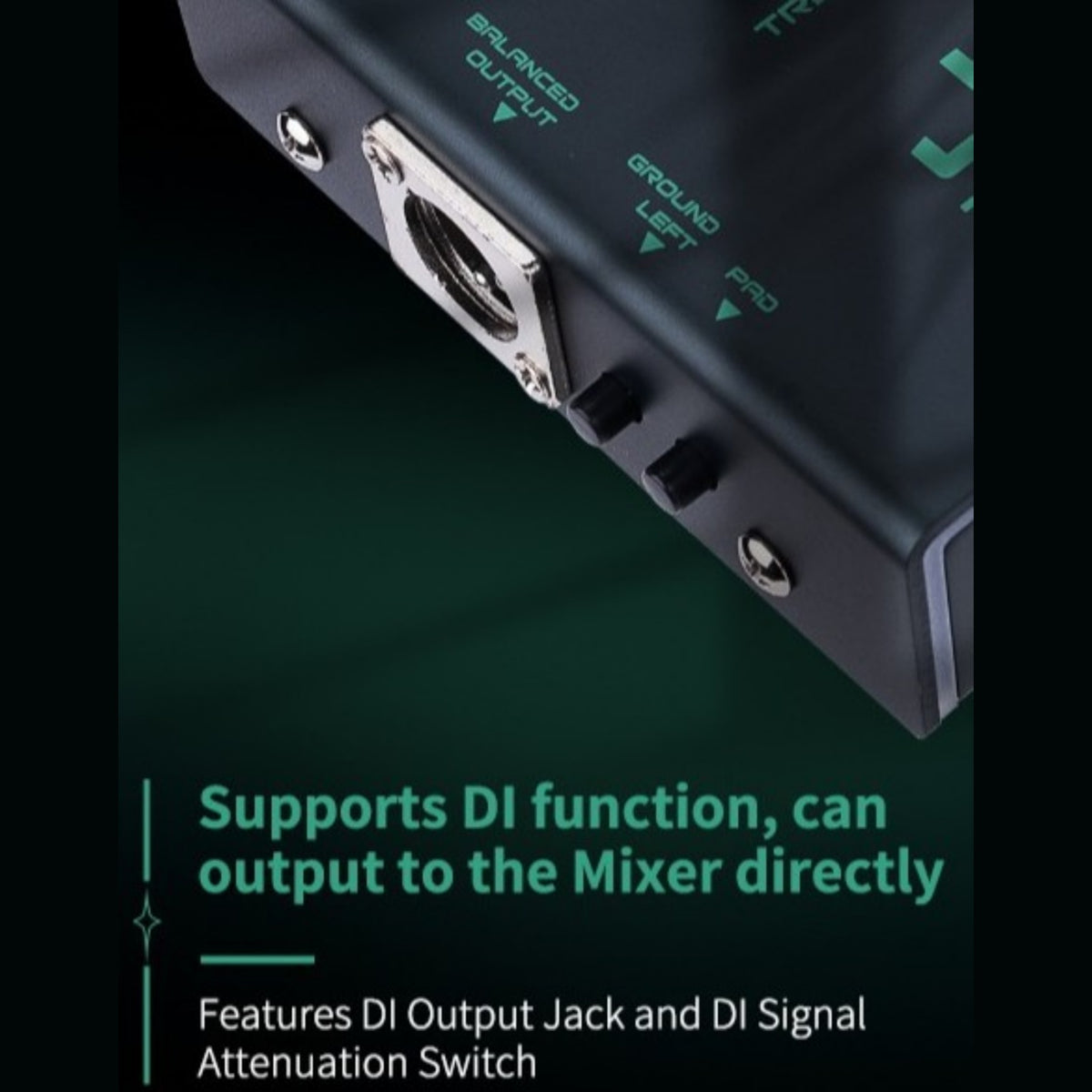

Built-In DI Function

The R30 Tidal Wave can also serve as a direct-output solution for live and recording environments.

• Dedicated 3-pin XLR DI Output
• Connect directly to a mixer, PA system or other compatible audio equipment
• DI Signal Attenuation switch provides additional output-level flexibility

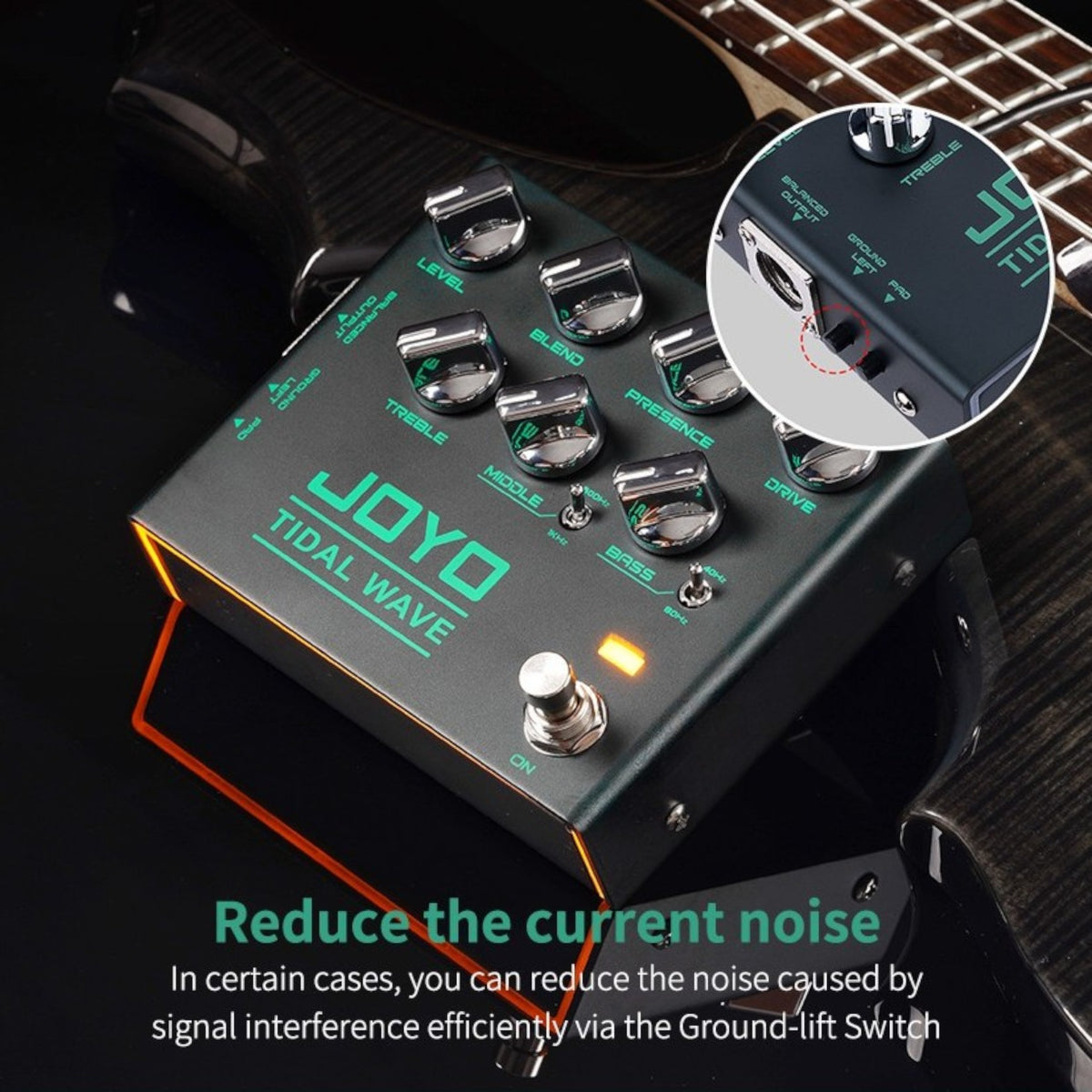

• Ground-Lift switch can help reduce unwanted noise caused by signal interference
• Practical solution for bass players who want preamp, tone shaping and DI functionality in one unit

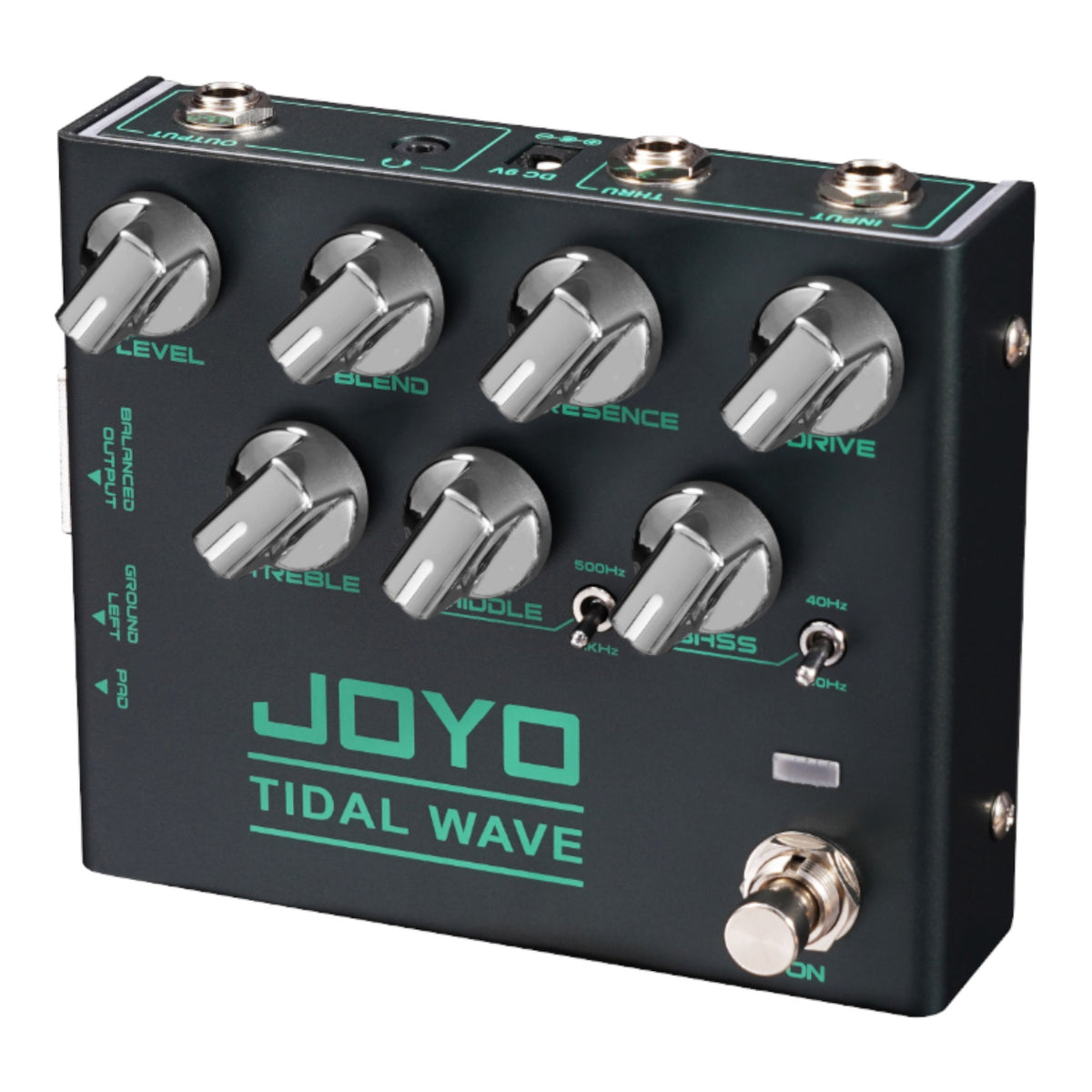

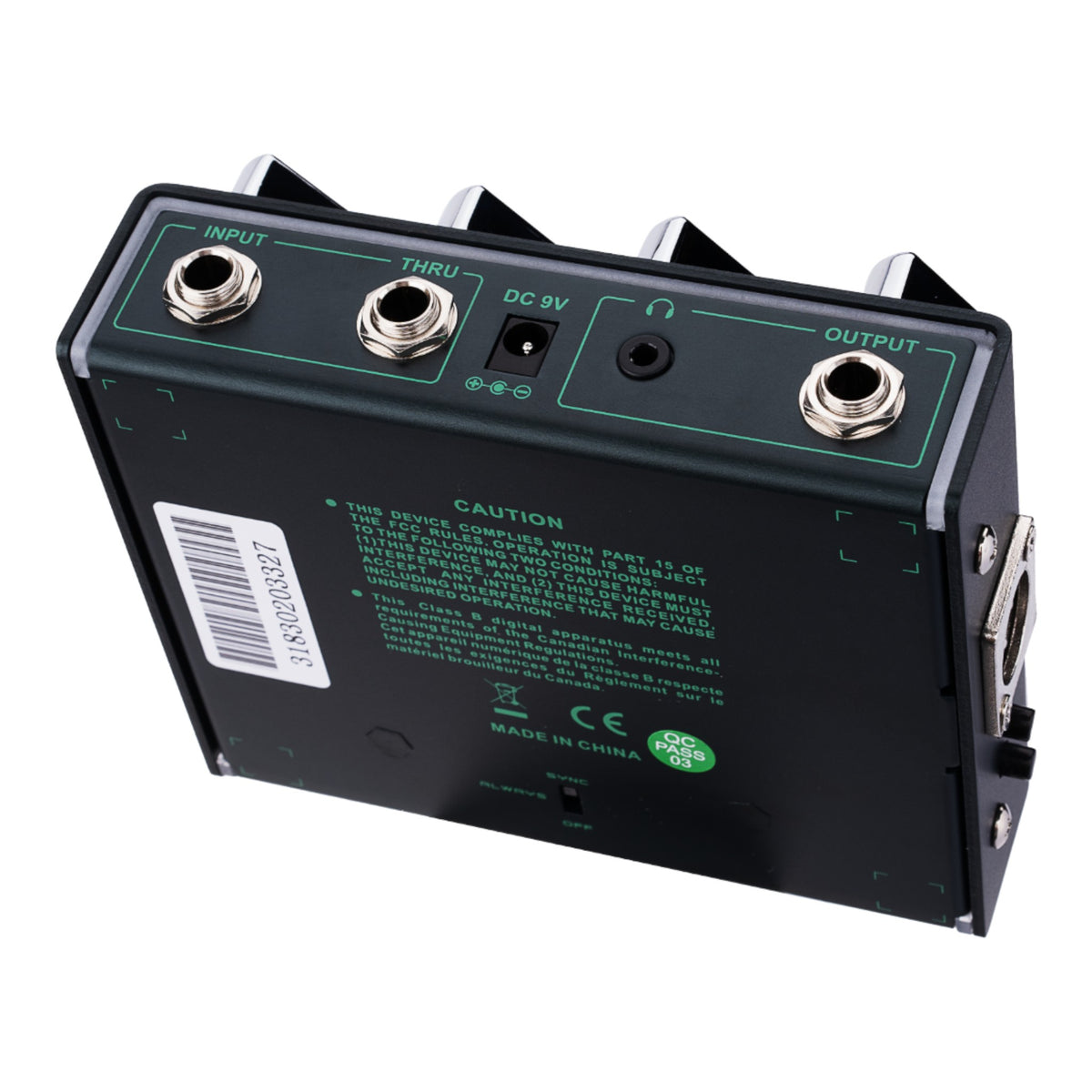

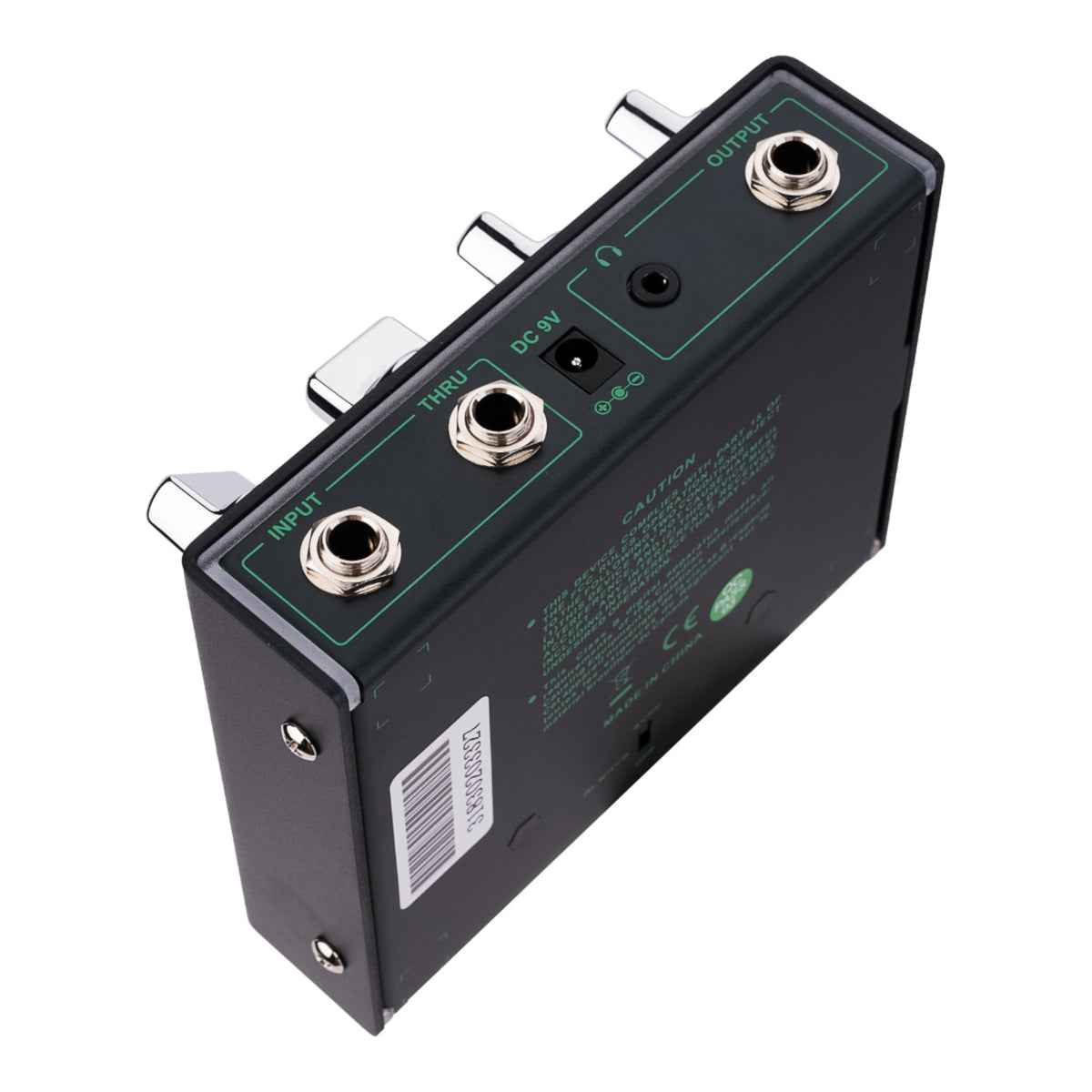

Additional Connectivity

The Tidal Wave provides multiple connection options for flexible bass setups.

• 6.35mm Input for bass connection
• 6.35mm Output for the processed signal
• 6.35mm Thru / Direct Output for passing the direct signal onward
• 3.5mm Headphone Output for convenient personal monitoring
• 3-pin XLR DI Output for direct connection to mixers and other professional audio equipment
• DC 9V power input, centre negative

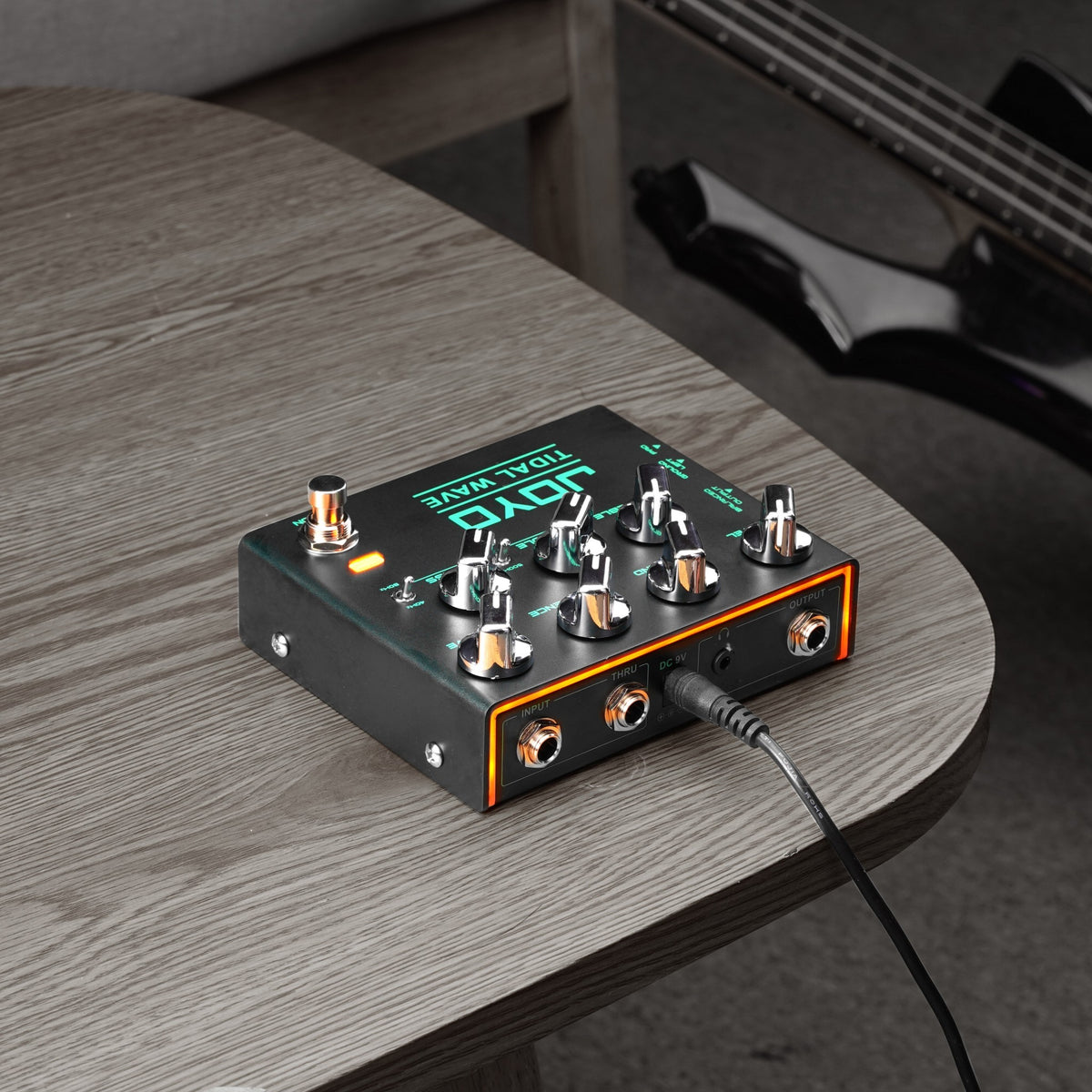

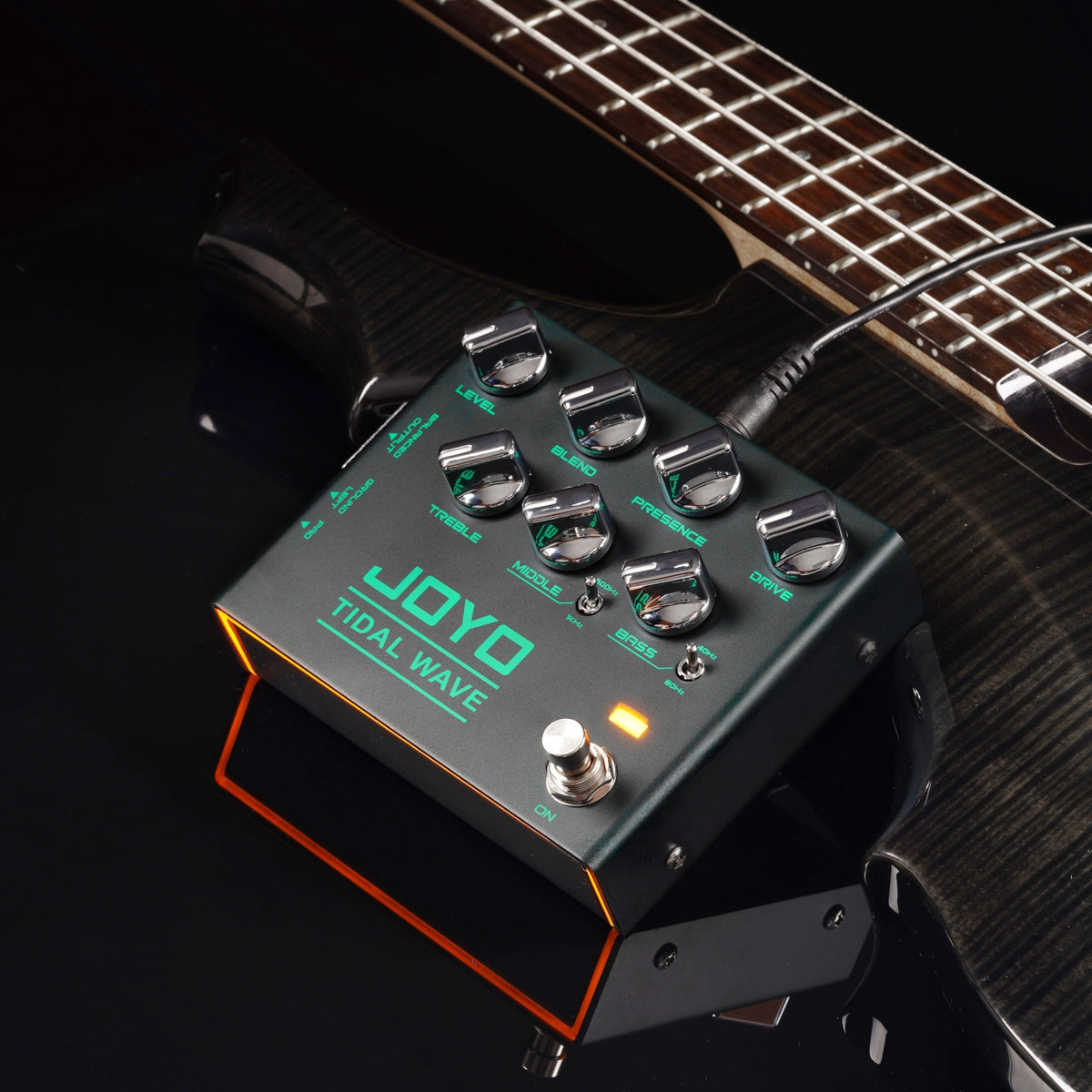

Ambience LED Lighting

The R30 Tidal Wave features integrated orange ambience lighting on both the front and rear of the pedal.

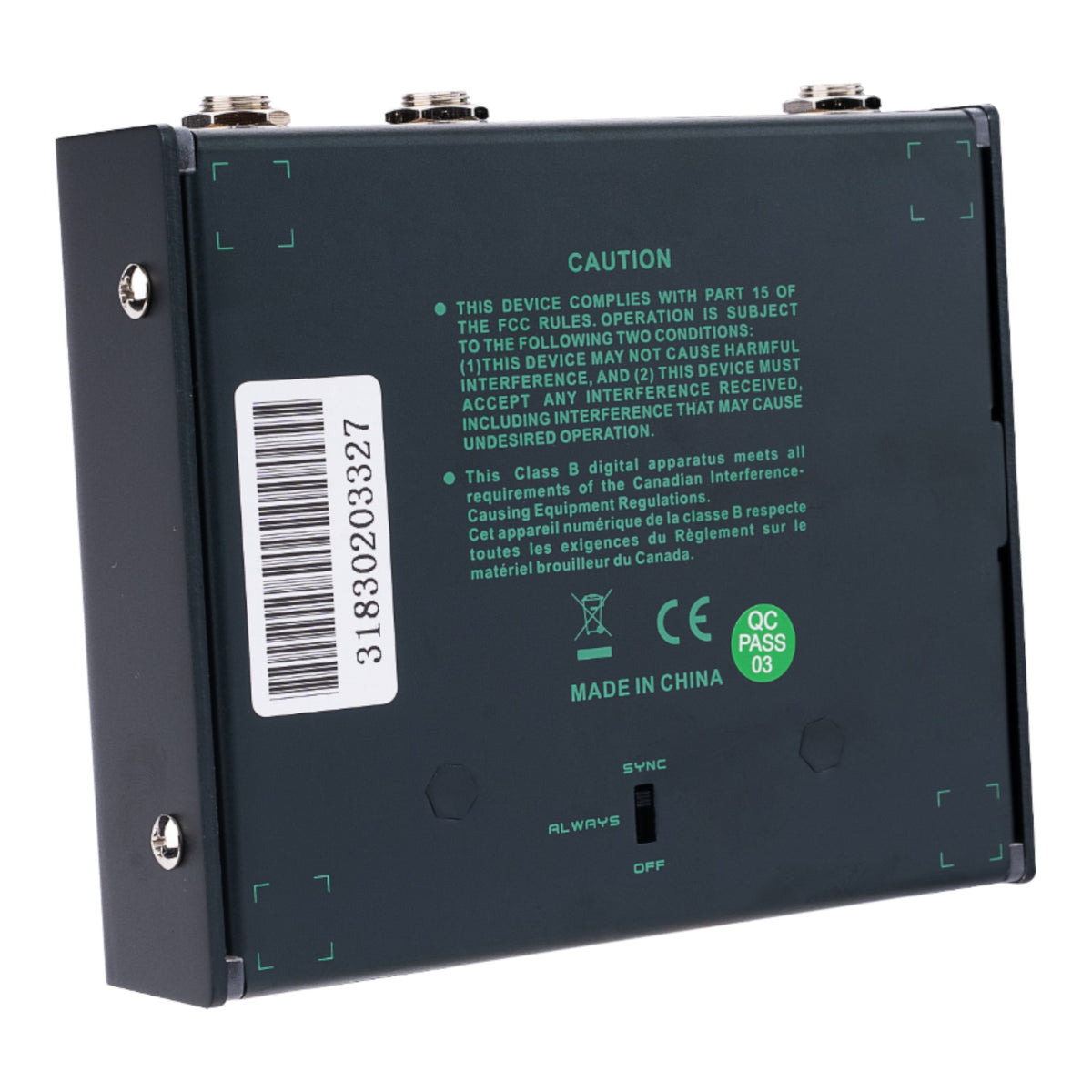

The ambience LED toggle provides three selectable lighting modes:

• SYNC – ambience lighting operates in sync with the footswitch
• ALWAYS – ambience lighting remains continuously on
• OFF – ambience lighting is switched off

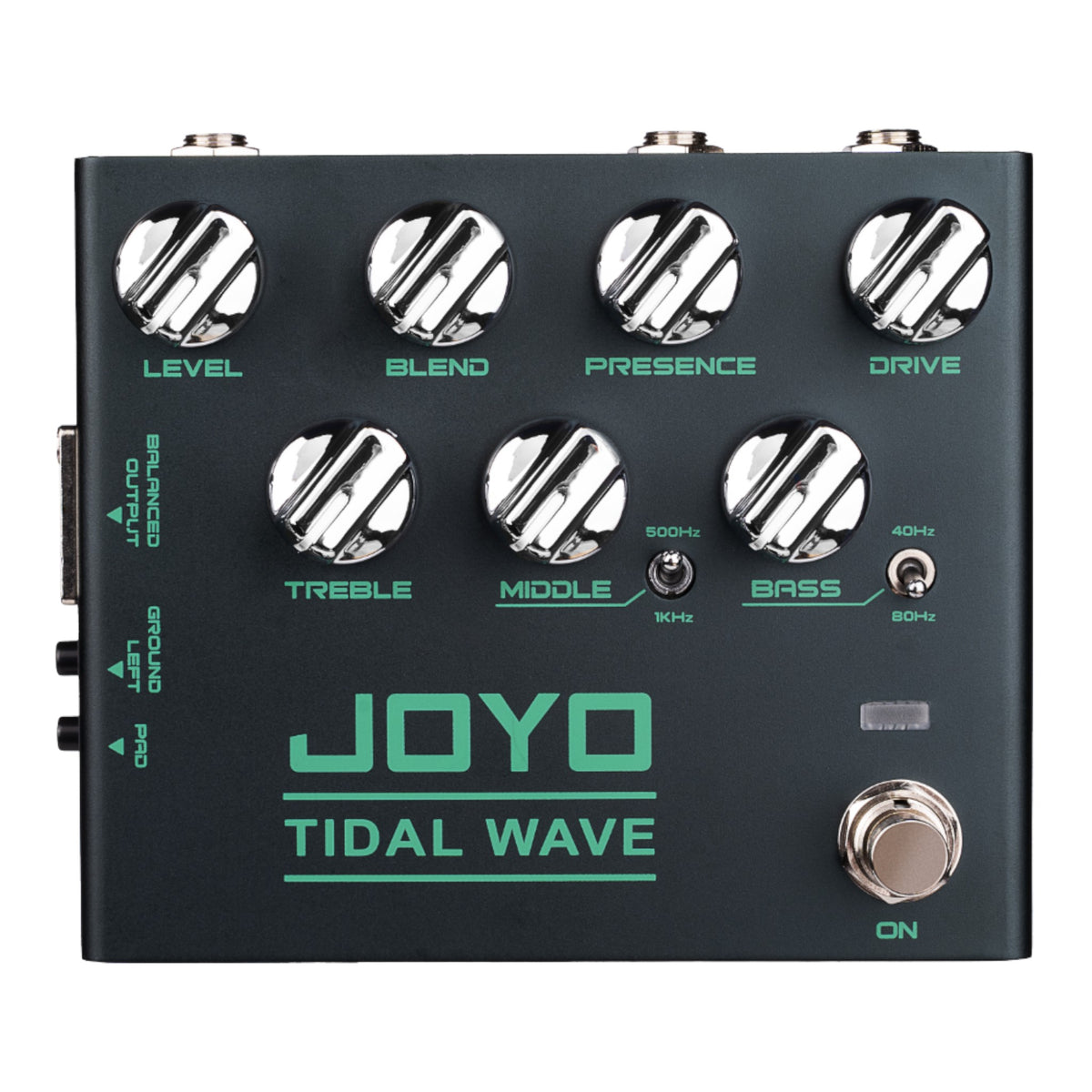

Controls & Functions

• DI Output Jack – 3-pin XLR balanced DI output
• Ground-Lift Switch – helps reduce unwanted signal interference noise
• DI Signal Attenuation Switch – adjusts the DI output level
• Level Control – controls output level
• Blend Control – mixes dry signal with cabinet-emulated signal
• Presence Control – adjusts presence/high-frequency character
• Drive Control – adds overdrive and tonal saturation
• Treble Control – adjusts high frequencies
• Middle Control – adjusts mid frequencies
• Bass Control – adjusts low frequencies
• Middle Shift Switch – selects 500Hz / 1000Hz
• Bass Shift Switch – selects 40Hz / 80Hz
• Effects Indicator – red LED

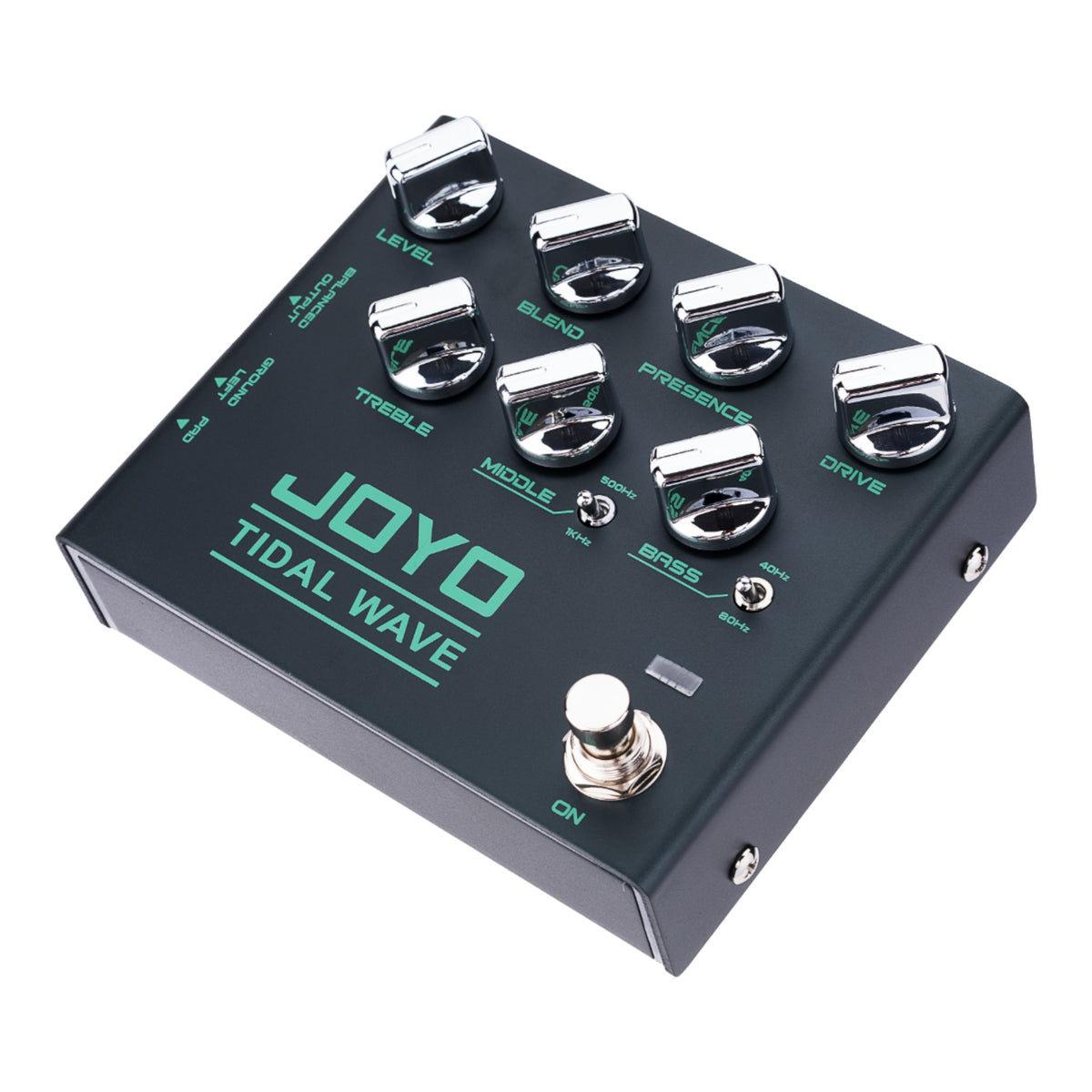

• Footswitch – activates the pedal
• Input – 6.35mm
• Thru – 6.35mm direct output
• Output – 6.35mm
• Headphone Output – 3.5mm
• DC 9V Input – centre-negative power connection
• Ambience LED Toggle – SYNC / ALWAYS / OFF
• Front Ambience LED – orange
• Rear Ambience LED – orange
• Non-slip Feet – provide additional stability

Specifications

• Brand : Joyo
• Model : R30 Tidal Wave
• Type : Bass Preamp / DI / Cabinet Simulation Pedal
• Tone : 1990s-inspired bass tone
• Input Impedance : 1MΩ
• Output Impedance : 1kΩ
• Working Current : <100mA
• Working Voltage : DC 9V, centre negative
• Dimensions : 130 × 110 × 50mm
• Weight : 442g
• Input : 6.35mm
• Output : 6.35mm
• Thru / Direct Output : 6.35mm
• Headphone Output : 3.5mm
• DI Output : 3-pin XLR
• Middle Shift : 500Hz / 1000Hz
• Bass Shift : 40Hz / 80Hz
• Ambience Lighting : SYNC / ALWAYS / OFF
• Effects Indicator : Red LED
• Ambience LEDs : Orange

Package Includes

• 1 × JOYO R30 Tidal Wave Bass Preamp & DI Pedal
• 1 × Owner's Manual

Power supply not included. Requires a compatible DC 9V centre-negative power supply.
