Available for PREORDER : EST LATE SEPT 2026

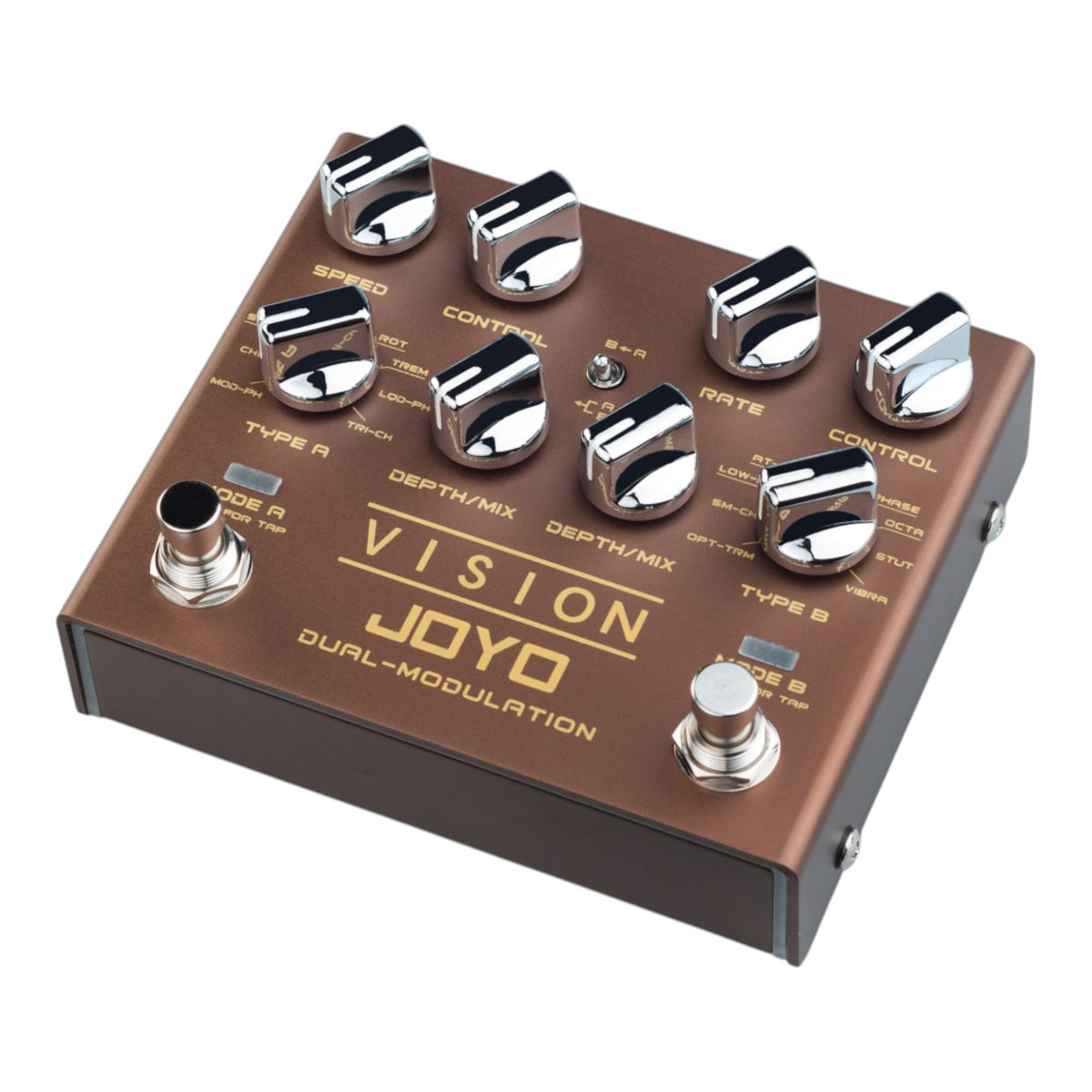

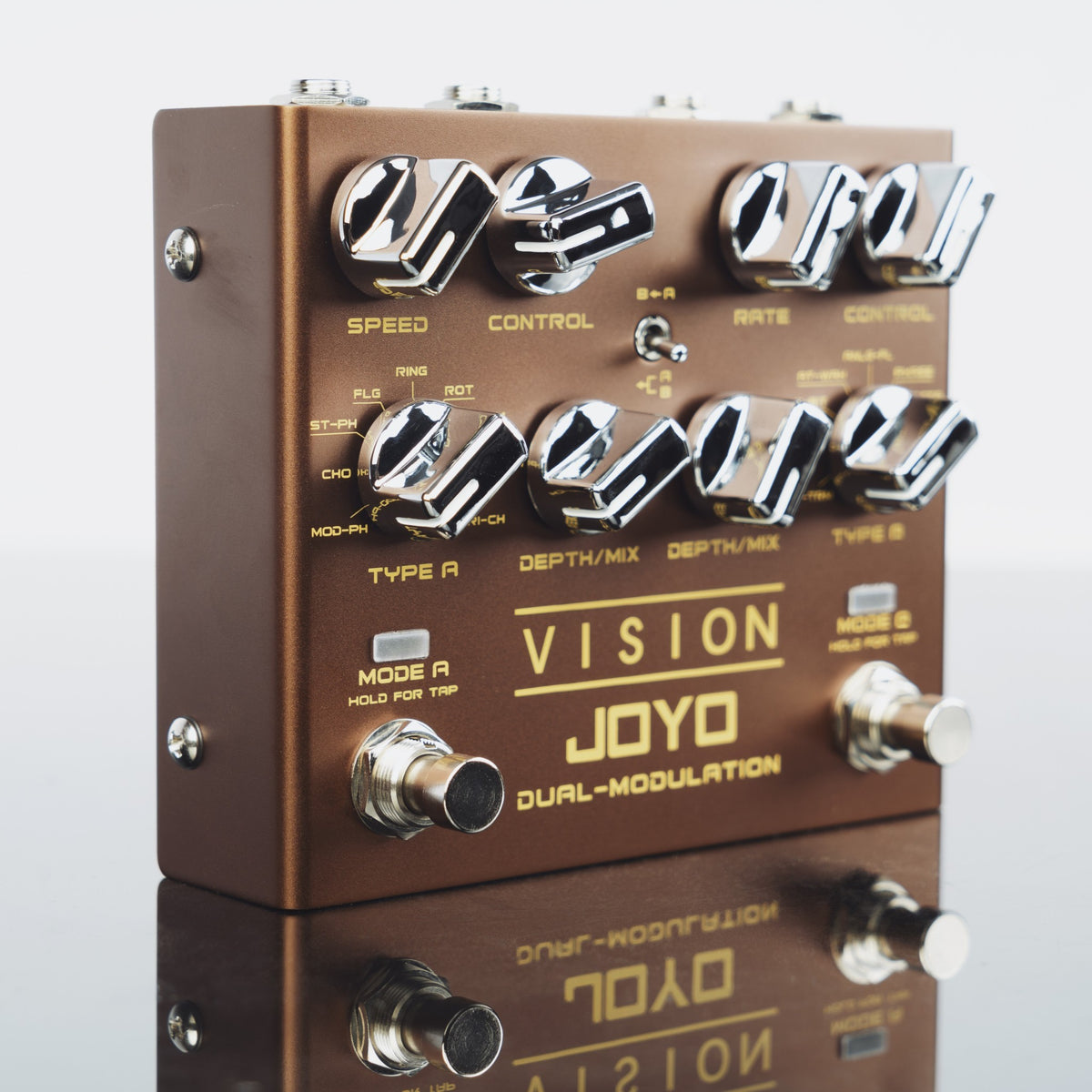

The JOYO R09 “Vision” is a versatile dual-channel modulation pedal designed to deliver a wide range of atmospheric, rhythmic and expressive modulation tones in a single compact unit. Featuring two independent modulation modules, each with 9 selectable effects, Vision provides an impressive 18 modulation effects with separate controls for speed/rate, character and depth/mix.

Designed with stereo input and output, the R09 offers flexible signal routing for both mono and stereo setups. A central 3-position toggle switch allows the two modulation channels to be configured in different routing arrangements, while independent Tap Tempo control for each channel provides precise tempo-based modulation.

Features

• Dual independent modulation channels
• 18 total modulation effects - 9 effects per channel
• Independent controls for each modulation channel
• Separate Speed/Rate, Control and Depth/Mix parameters
• Independent Tap Tempo for both channels
• Stereo input and stereo output
• 3-position toggle switch for flexible A/B signal routing
• Series and parallel routing options
• True Bypass signal path
• 24-bit sampling accuracy
• 44.1kHz sample rate
• Adjustable ambience LED lighting
• Two dedicated footswitches
• Compact and rugged JOYO enclosure

18 Modulation Effects

The R09 Vision combines two independent modulation modules, with 9 selectable effects on each channel.

MODE A

• 9 selectable modulation effects
• Independent SPEED control
• Independent CONTROL parameter
• Independent DEPTH/MIX control
• Dedicated Tap Tempo
• Dedicated footswitch and status indicator

MODE B

• 9 selectable modulation effects
• Independent RATE control
• Independent CONTROL parameter
• Independent DEPTH/MIX control
• Dedicated Tap Tempo
• Dedicated footswitch and status indicator

This dual-module design allows Vision to cover everything from subtle modulation and movement to more pronounced, layered and experimental textures.

Dual-Channel Routing

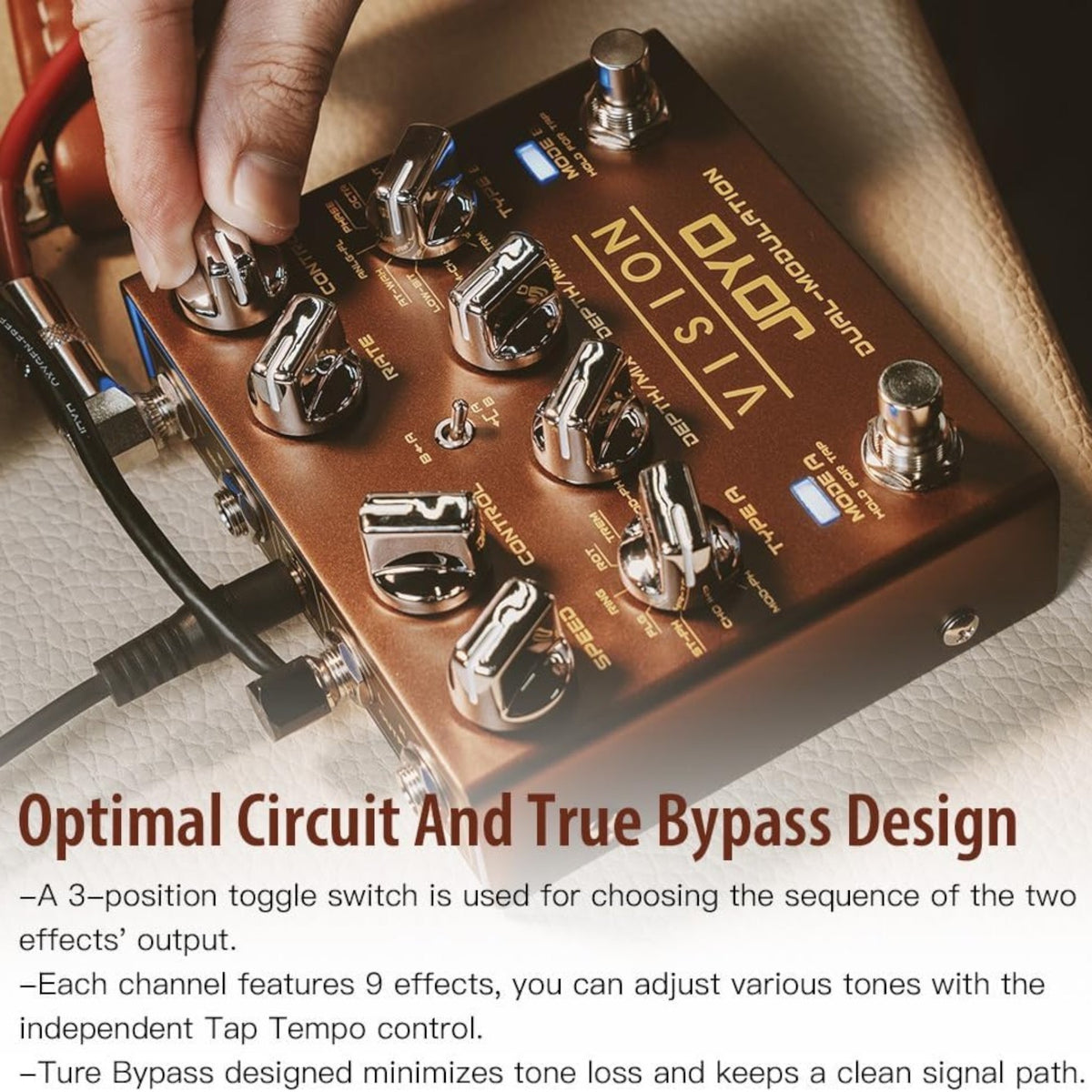

The central toggle switch provides flexible routing between MODE A and MODE B, allowing the two modulation sections to operate in different configurations.

• Series routing - MODE A and MODE B operate sequentially
• Parallel routing - the two modulation sections can operate alongside the dry signal or each other
• Multiple routing combinations for layered modulation textures

This makes the R09 particularly versatile for building complex modulation sounds from a single pedal.

Independent Tap Tempo

Both modulation channels feature their own Tap Tempo functionality, allowing the modulation rate of each section to be synchronised independently.

The dedicated footswitches also serve as the individual channel controls, with tempo indication provided by the corresponding blue status LEDs when Tap Tempo is active.

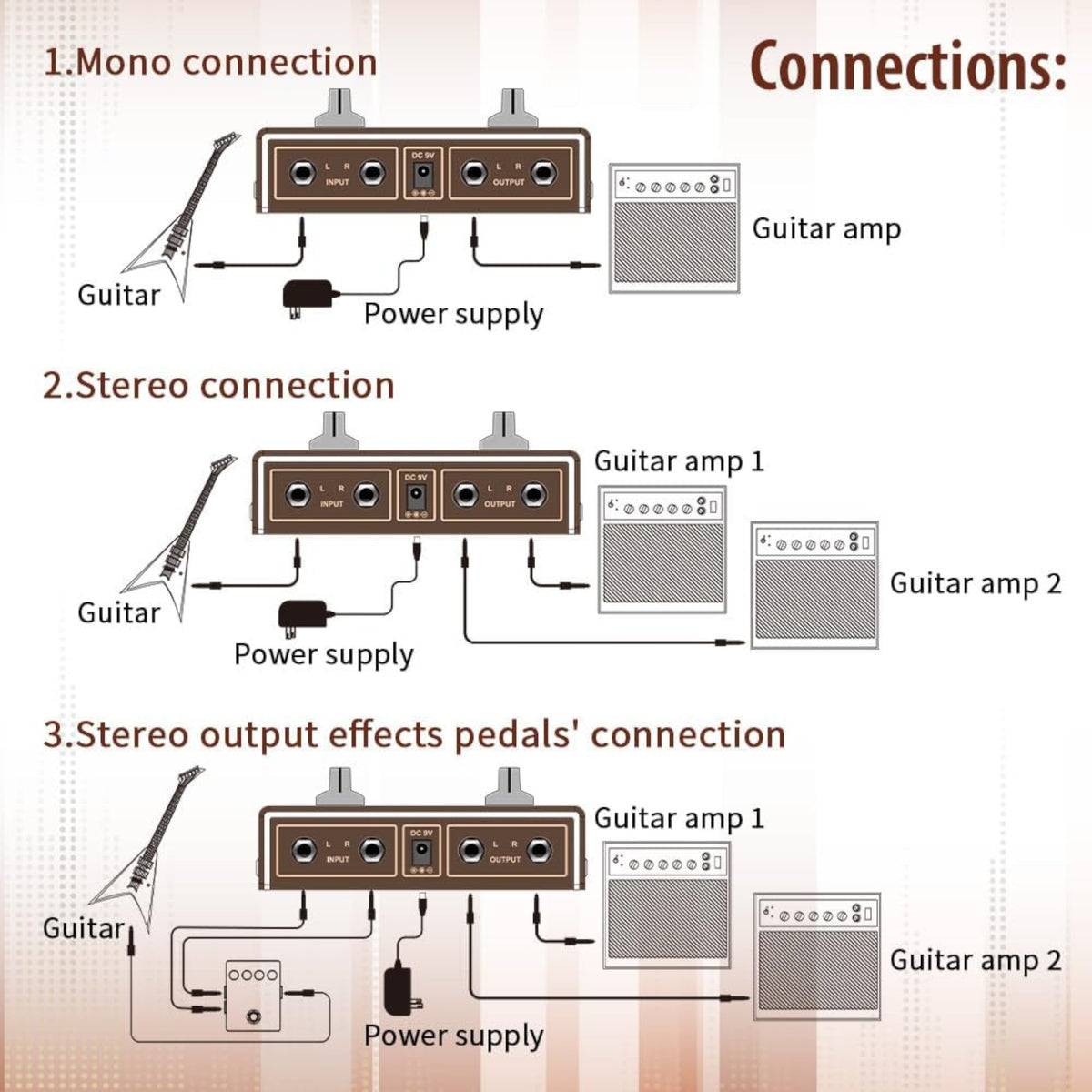

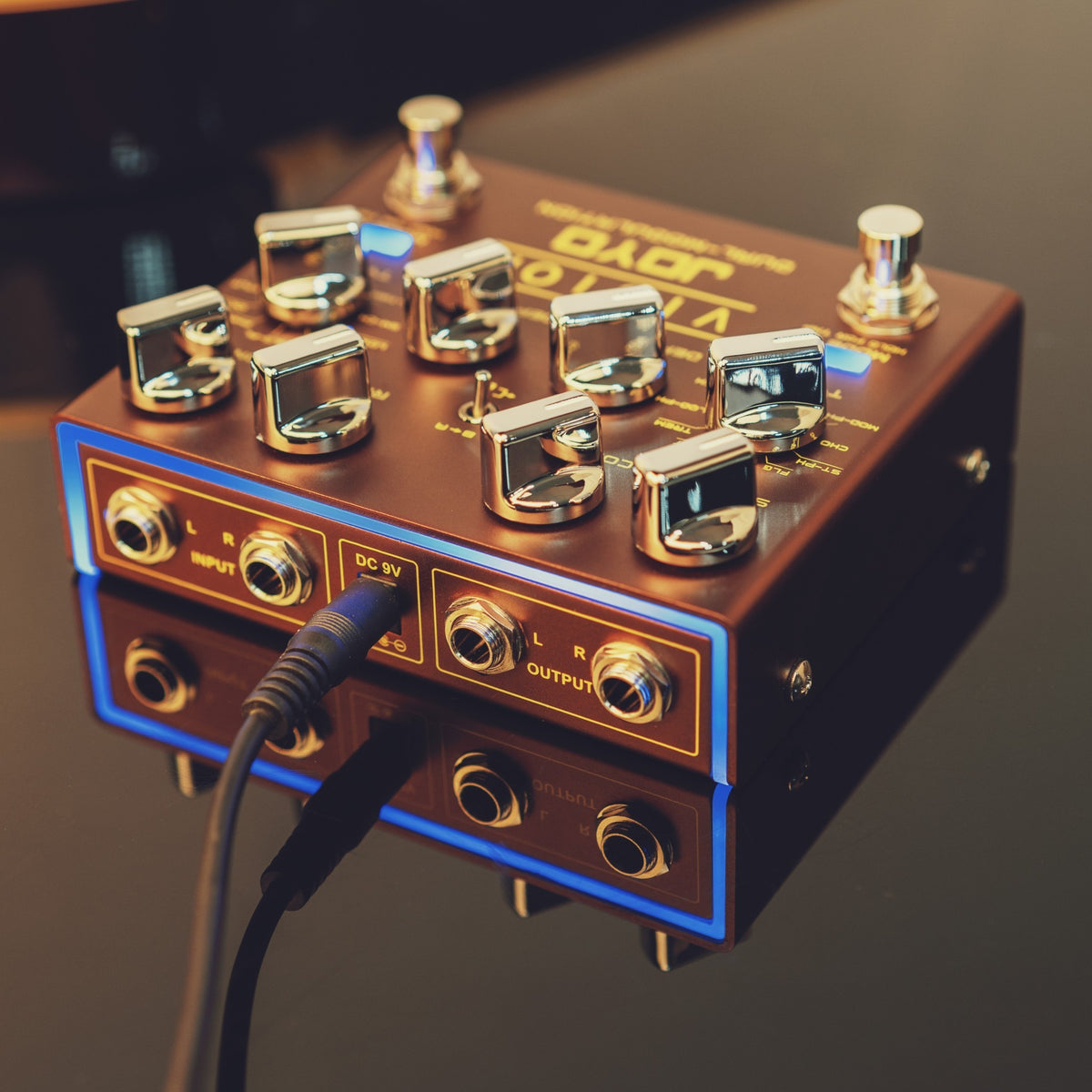

Stereo Input & Output

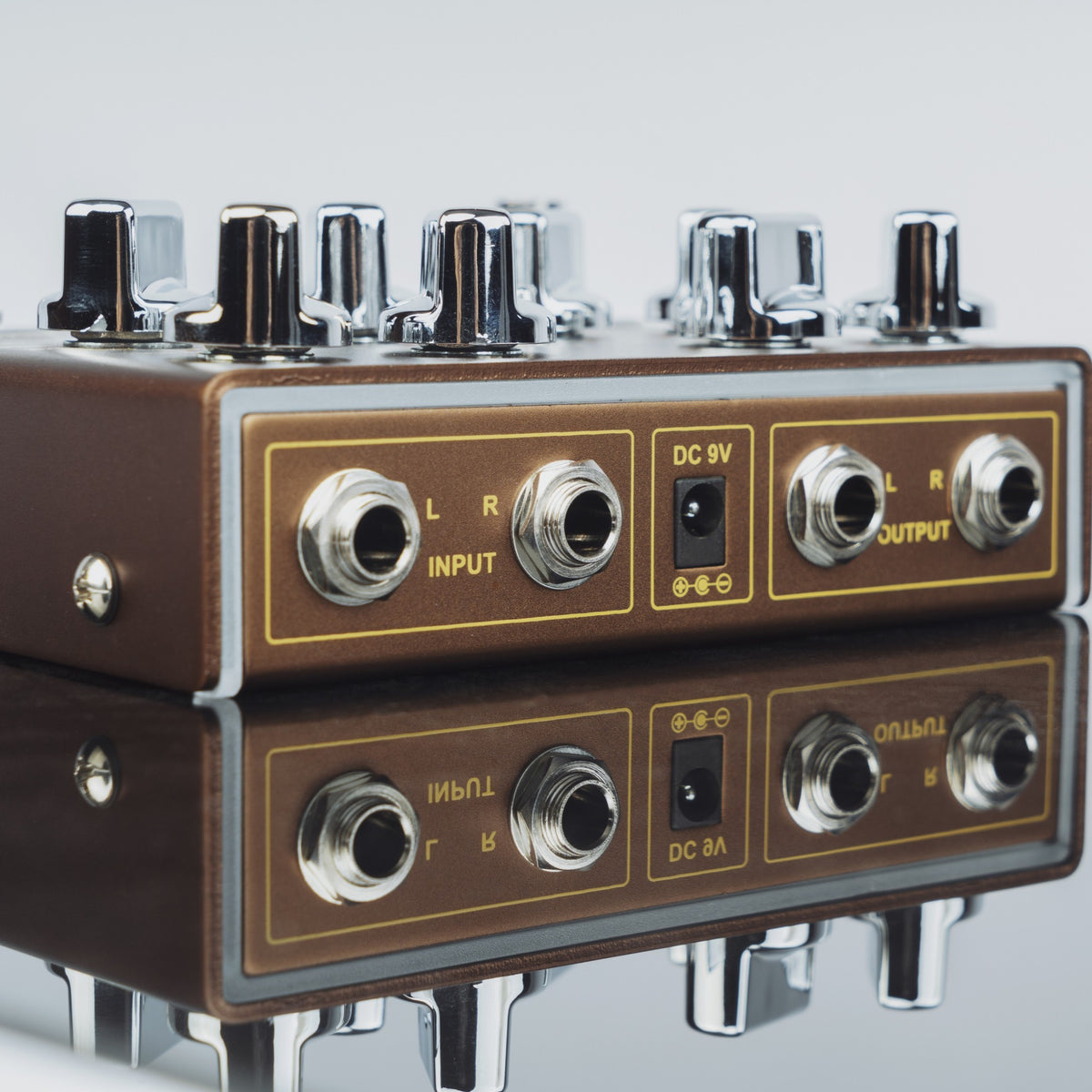

The Vision supports stereo connectivity through dual 6.35mm input and output connections.

• Dual 6.35mm inputs
• Dual 6.35mm outputs
• Mono operation supported
• Stereo signal routing supported
• Suitable for stereo amplifier and effects setups

True Bypass

The R09 uses a True Bypass signal path, helping preserve the instrument's original signal when the pedal is bypassed.

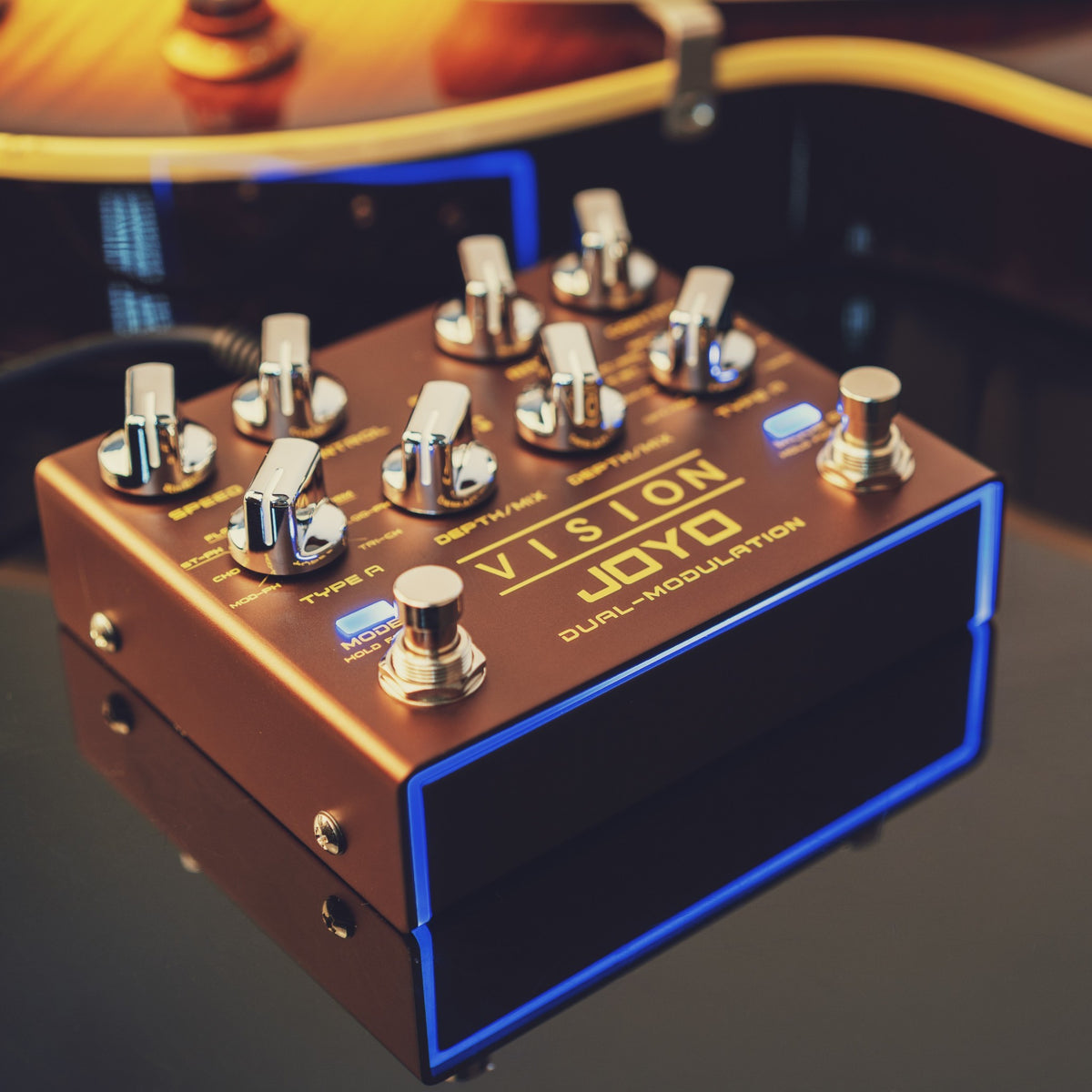

Ambience Lighting

The pedal features integrated blue ambience lighting with three selectable settings:

• SYNC - lighting follows the pedal's active/bypass status
• ALWAYS - ambience light remains illuminated
• OFF - ambience lighting disabled

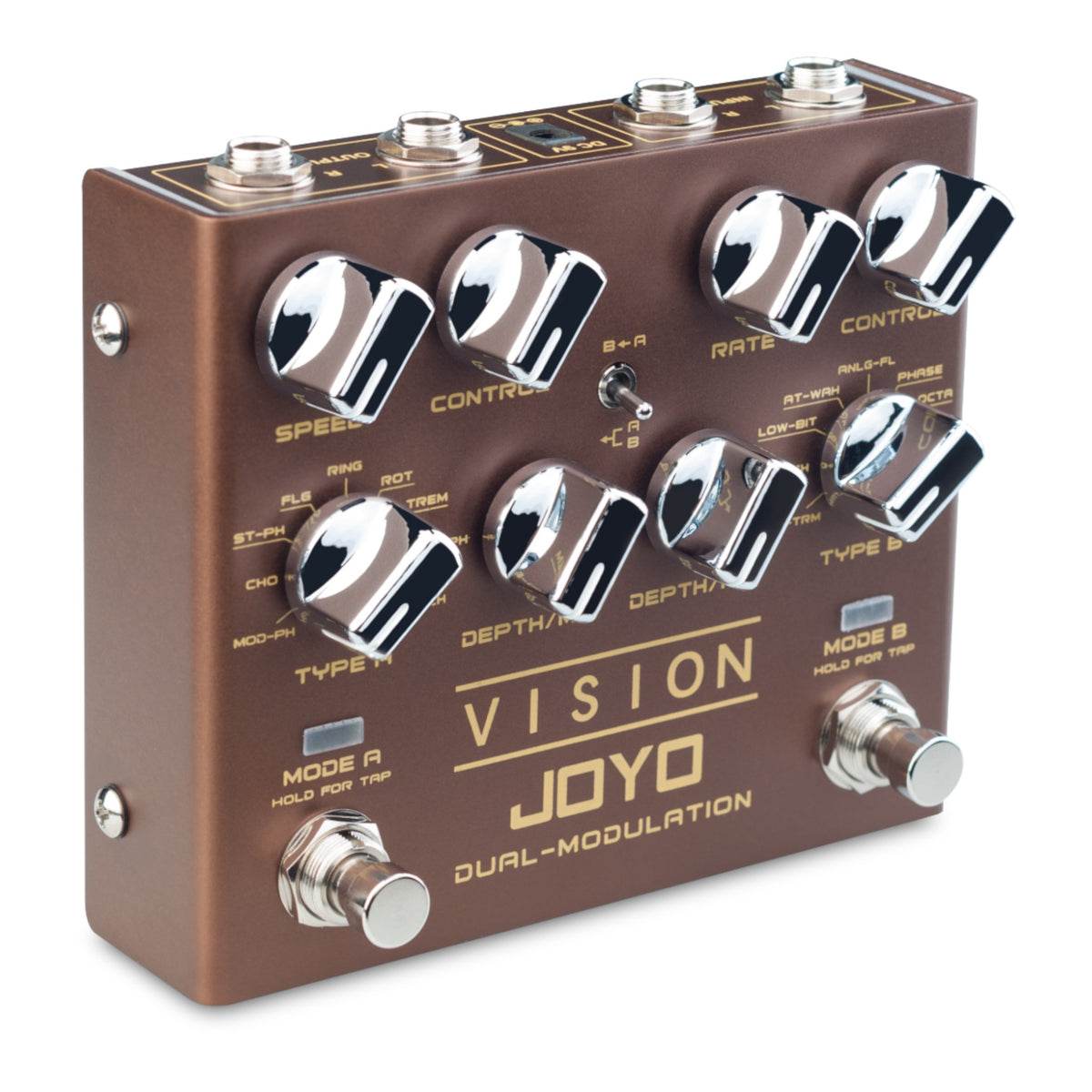

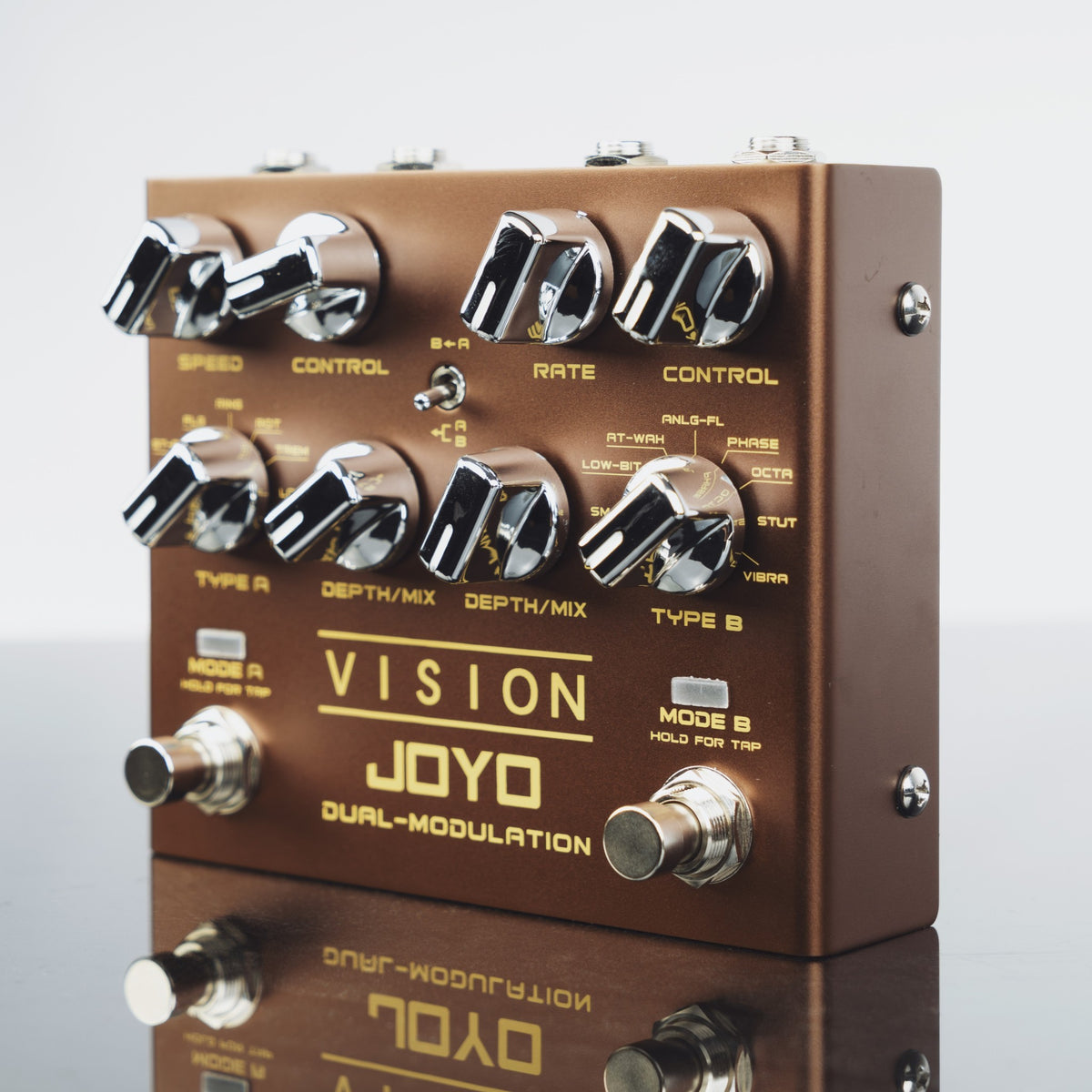

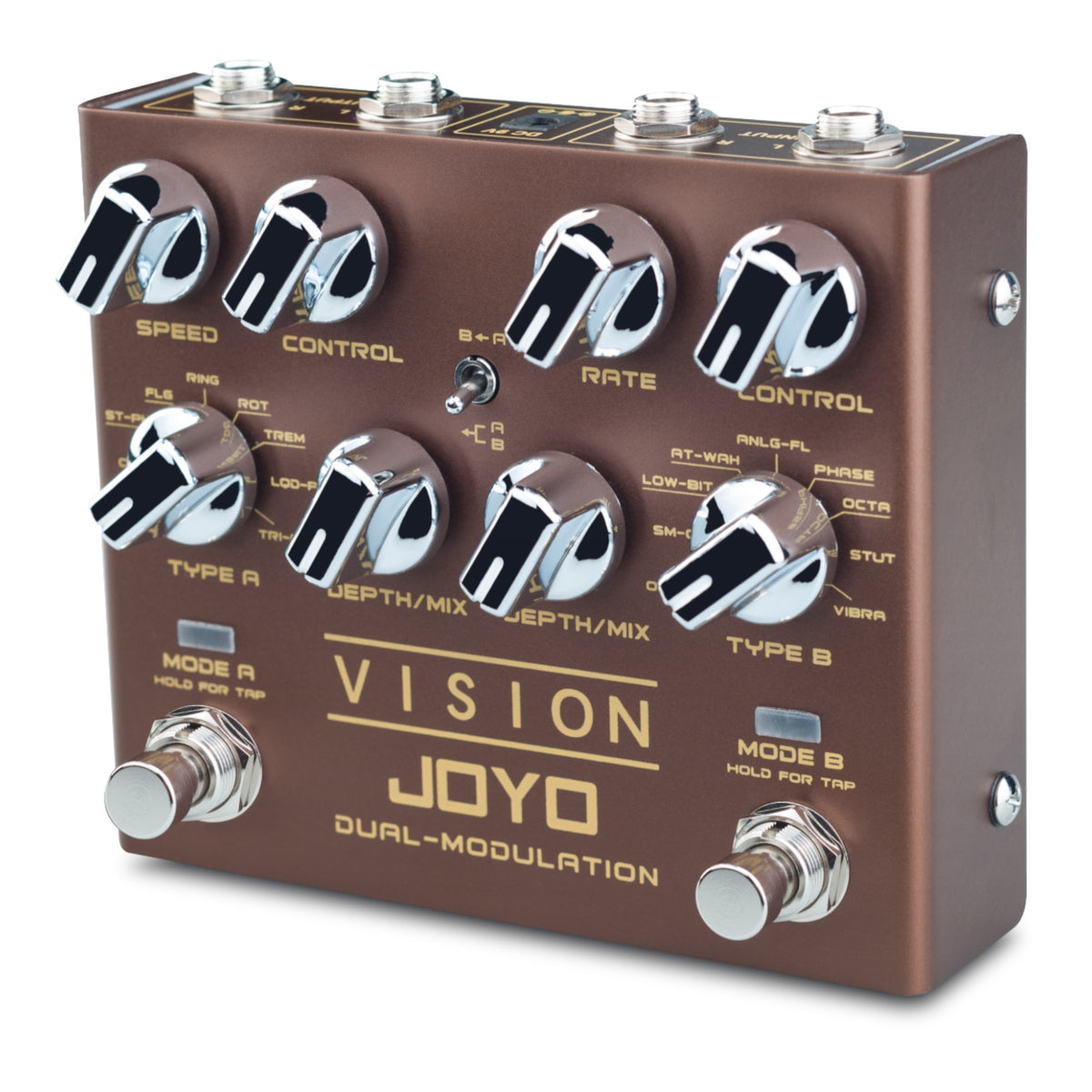

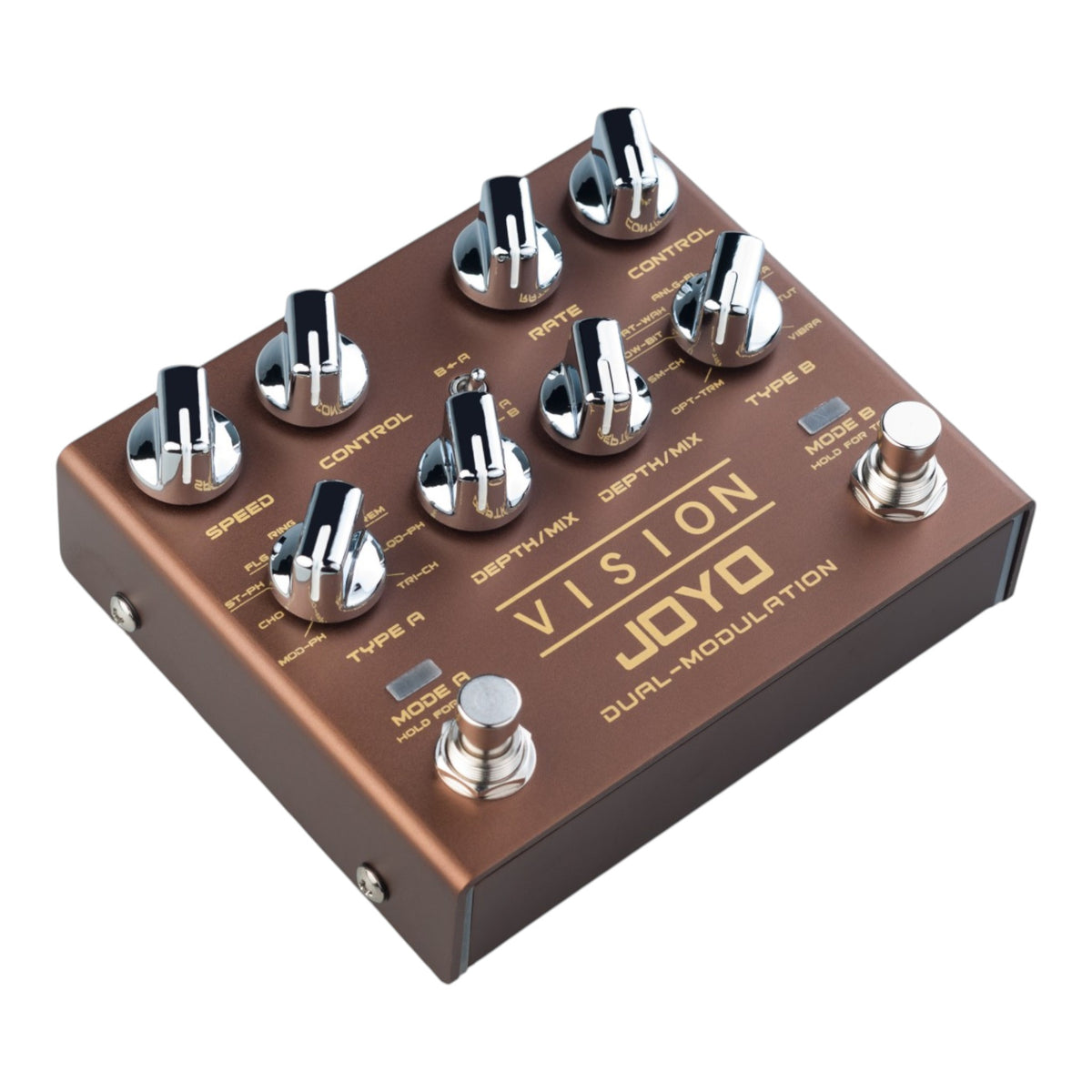

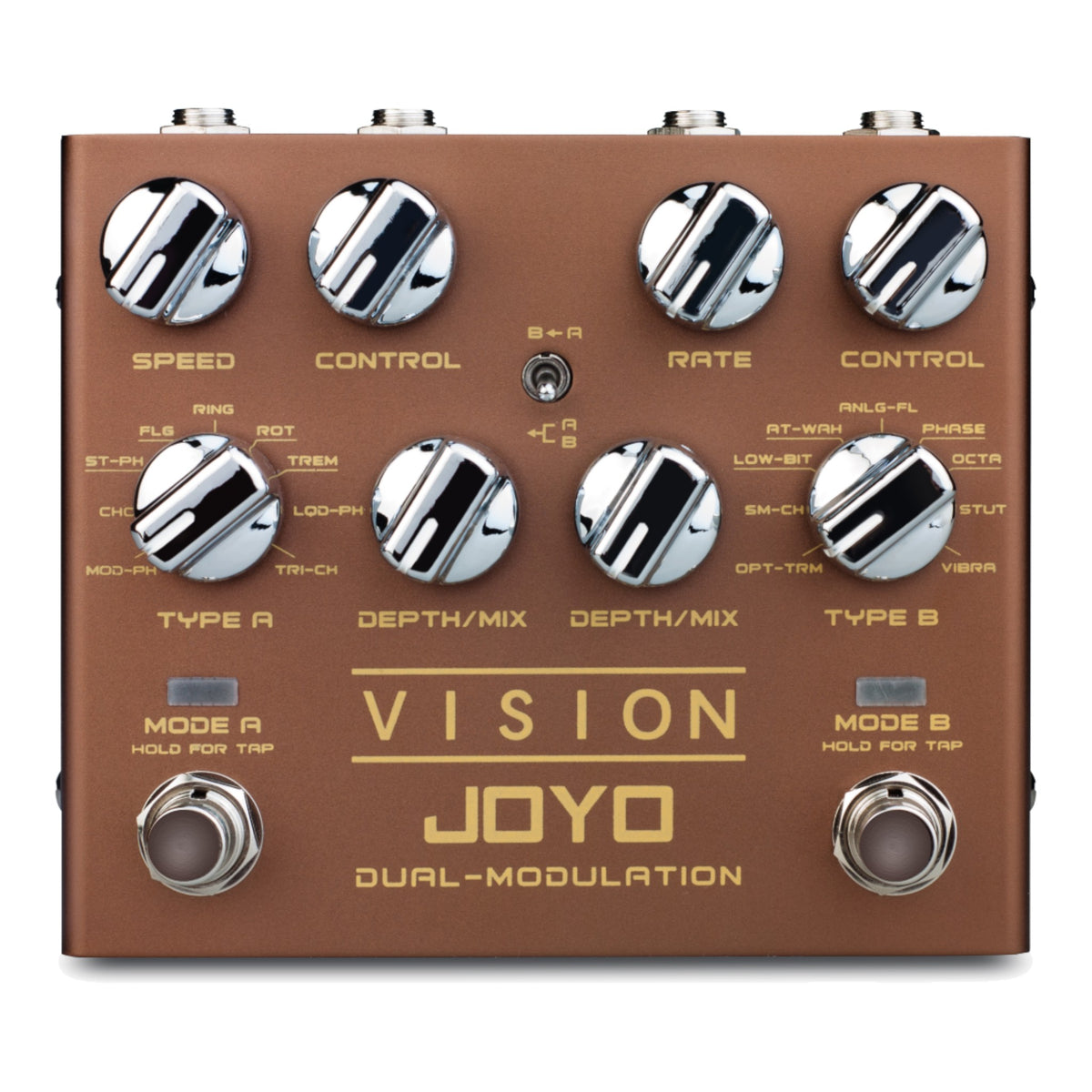

Controls & Connections

• SPEED - MODE A modulation speed
• TYPE A - selects one of 9 MODE A effects
• CONTROL - adjusts the selected MODE A effect characteristics
• DEPTH/MIX - adjusts MODE A depth and mix
• Toggle Switch - selects the routing configuration between MODE A and MODE B
• DEPTH/MIX - adjusts MODE B depth and mix
• RATE - MODE B modulation speed
• TYPE B - selects one of 9 MODE B effects
• CONTROL - adjusts the selected MODE B effect characteristics
• MODE A Footswitch - controls MODE A and Tap Tempo
• MODE B Footswitch - controls MODE B and Tap Tempo

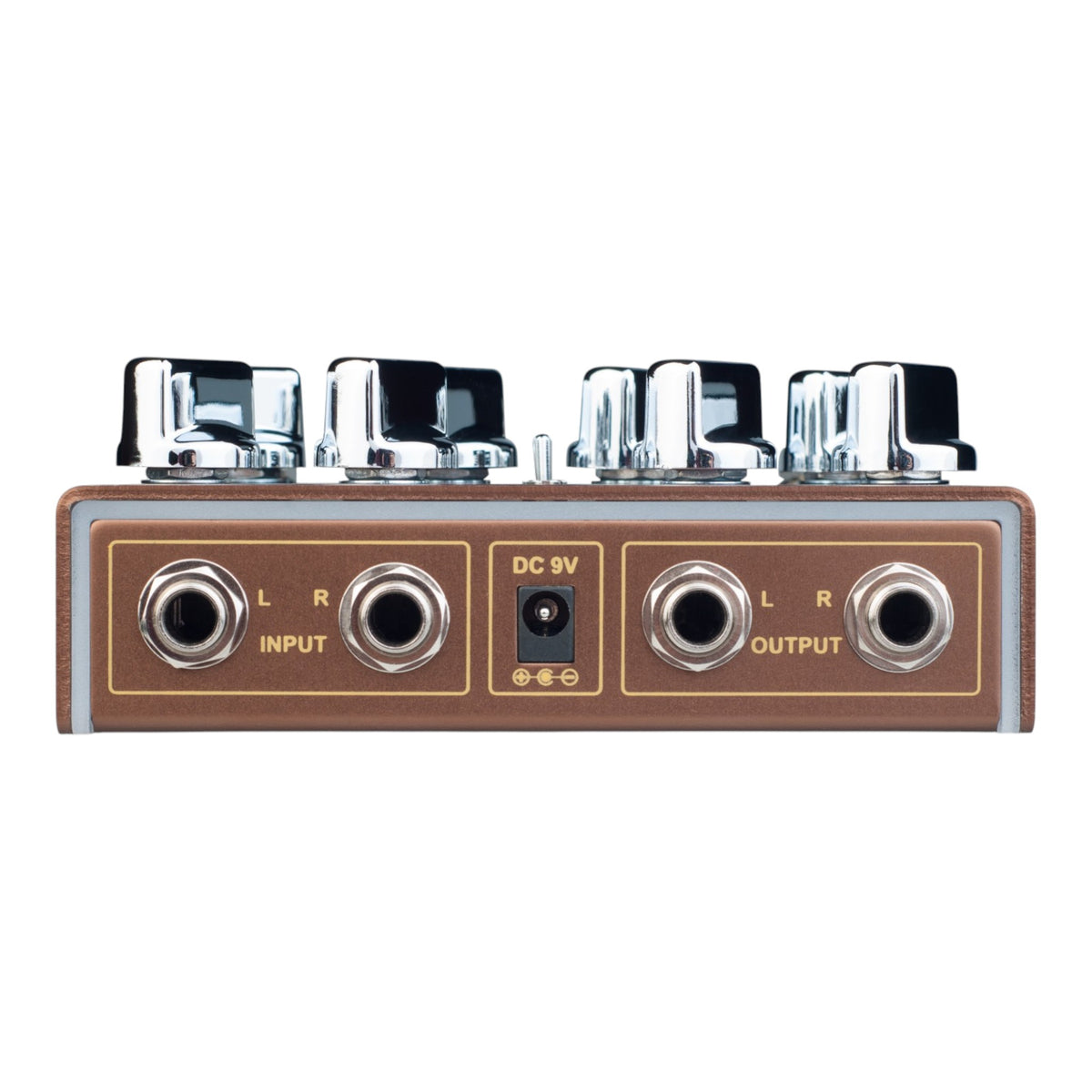

• INPUT L/R - dual 6.35mm inputs
• OUTPUT L/R - dual 6.35mm outputs
• DC IN - 9V centre-negative power connection

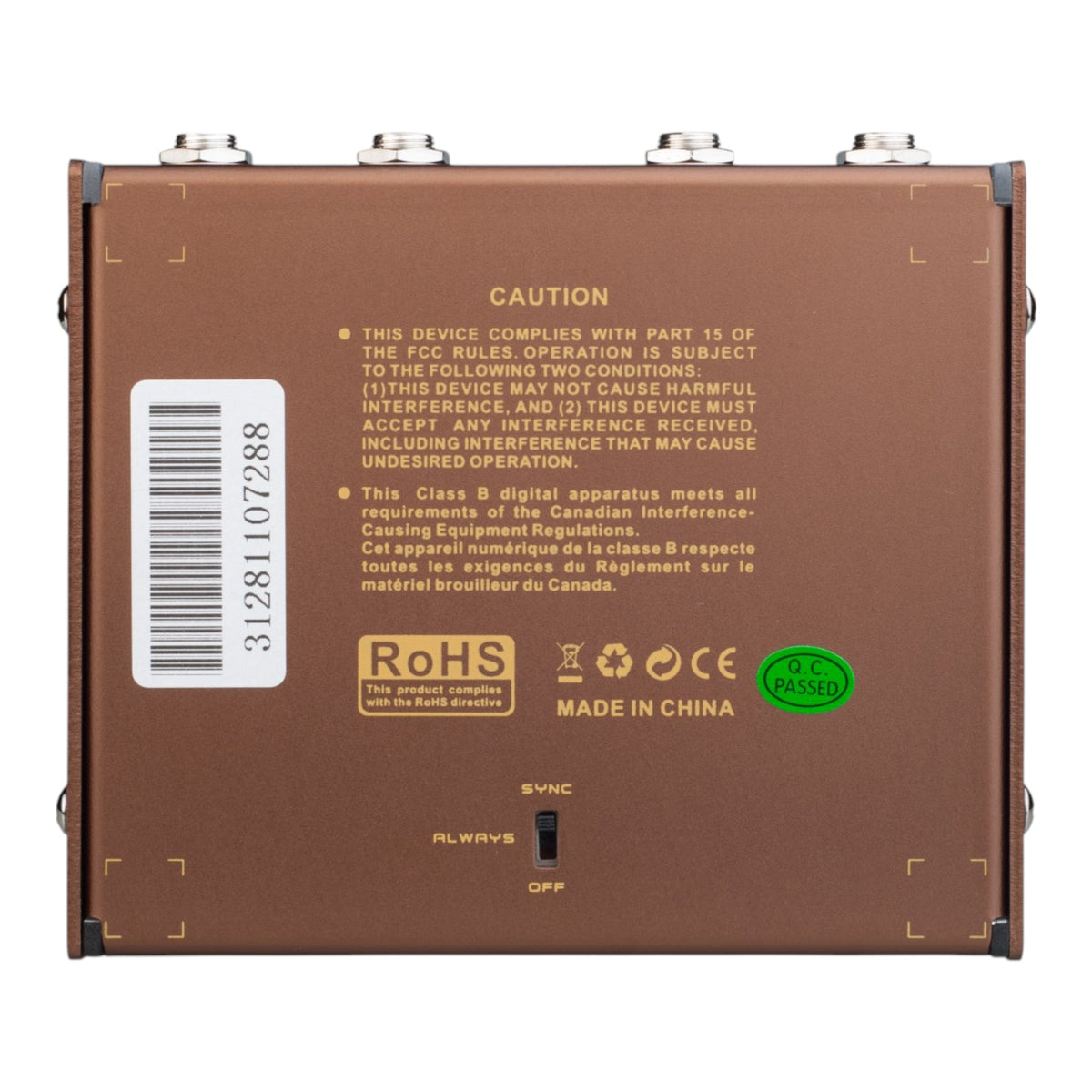

• Ambience Control - SYNC / ALWAYS / OFF

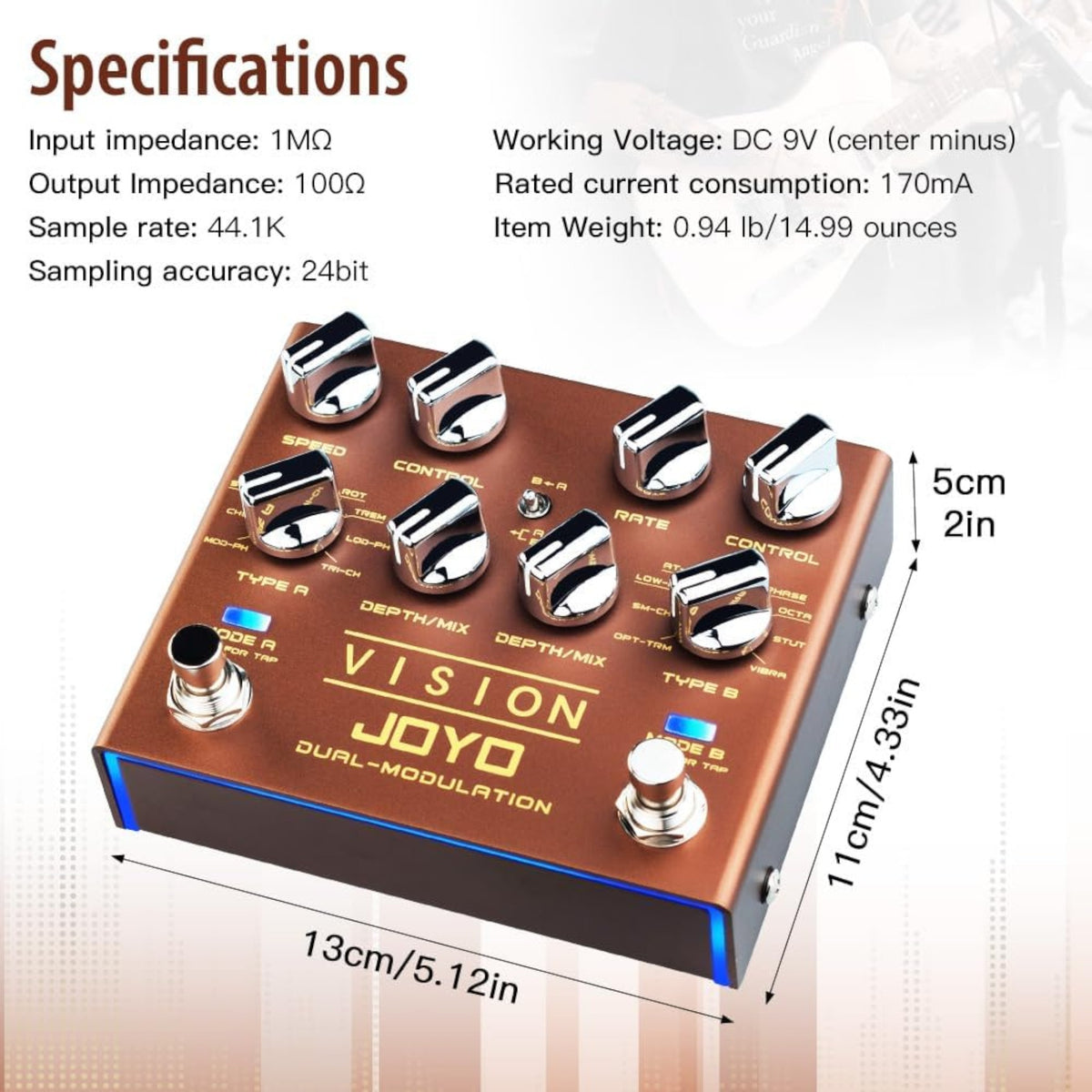

Specifications

• Brand : Joyo
• Model : R09 “Vision”
• Type : Dual-Channel Modulation Pedal
• Effect Type : Modulation
• Number of Effects : 18 total / 9 per channel
• Channels : 2 independent modulation modules
• Controls : Speed/Rate, Control ×2, Depth/Mix ×2, Type ×2
• Footswitches : 2
• Tap Tempo : Independent Tap Tempo for each channel
• Input : 6.35mm ×2, 1/4" mono audio interfaces
• Output : 6.35mm ×2, 1/4" mono audio interfaces
• Input Impedance : 1MΩ
• Output Impedance : 100Ω
• Sample Rate : 44.1kHz
• Sampling Accuracy : 24-bit
• Rated Current Consumption : 170mA
• Working Voltage : DC 9V, centre-negative
• Bypass Type : True Bypass
• LED Modes : Sync / Always / Off
• Battery Powered : No
• Dimensions : 130 × 110 × 50mm
• Weight : 425g

Package Includes

• 1 × JOYO R09 “Vision” Dual-Channel Modulation Pedal
• 1 × Owner’s Manual

Power supply is not included. Requires a compatible DC 9V centre-negative power supply.
